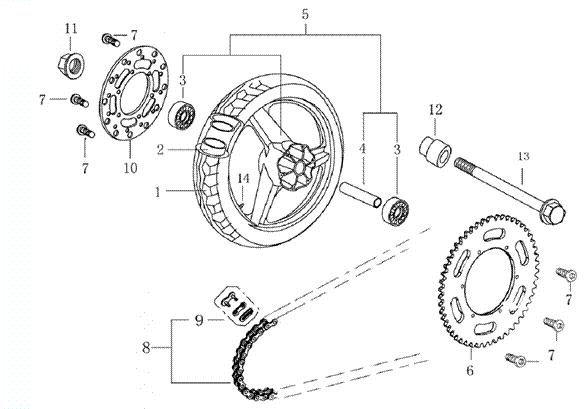

| F18.
REAR WHEEL ASSY |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NO. |
PART NO. |
DESCRIPTION |
QTY |
|
| 1&2 |
V172030-FY20-0000 |
Tire(Tubeless),Rear
Wheel (120/70-16) |
1 |
|
| 3 |
42657-FYBQ-000 |
Bearing 6202-2RS |
2 |
|
| 4 |
42658-FYBQ-000 |
Bush,Rear Wheel |
1 |
|
| 5 |
V172100-FY20-0GR02 |
Rear Wheel Rim Assy
(Dark Gray) |
1 |
|
| 5 |
V172100-FY20-1B03 |
Rear Wheel Rim Assy
(Dark Black) |
1 |
|
| 5 |
V172100-FY20-0B03 |
Rear Wheel Rim Assy
(Dark Black) |
1 |
|
| 5 |
V172100-FY20-0A00 |
Rear Wheel Rim Assy
(Silver) |
1 |
|
| 6 |
V125001-FYBQ-0000 |
Sprocket (420/53) |
1 |
|
| 7 |
90117-06020-10C |
Bolt M6×20 |
12 |
|
| 8 |
GB1243.1-83-06B114 |
Chain 420-114B |
1 |
|
| 9 |
41210-FYBQ-000 |
Connector,Chain |
1 |
|
| 10 |
43201-FY20-000 |
Rear Brake Disc |
1 |
|
| 11 |
GB/T6187.2-M12*1.25-A2G |
Lock Nut M12×1.25 |
1 |
|
| 12 |
42315-FY20-000 |
Left Bush,Rear Wheel |
1 |
|
| 13 |
42310-FY20-000 |
Rear Wheel Axle |
1 |
|
| 14 |
42753-FY8-000 |
Valve spile |
1 |
|
|
|
|
|
|
|
