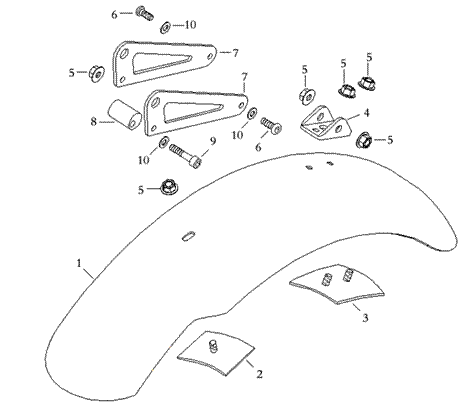

| F17.
REAR FENDER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NO. |
PART NO. |
DESCRIPTION |
QTY |
|
| 1 |
80110-FYBQ-00Y |
Rear Fender (Yellow) |
1 |
|
| 1 |
80110-FYBQ-YGB |
Rear Fender (Dark
black) |
1 |
|
| 1 |
80110-FYBQ-0GR |
Rear Fender (Grey) |
1 |
|
| 1 |
80110-FYBQ-00A |
Rear Fender (Silver) |
1 |
|
| 2 |
80115-FYBQ-000 |
Reinforcement Plate,
Rear FenderA |
1 |
|
| 3 |
80116-FYBQ-000 |
Reinforcement Plate,
Rear FenderB |
1 |
|
| 4 |
80112-FYBQ-000 |
Mounting Bracket,
Rear Fender |
1 |
|
| 5 |
GB/T6187.1-M6-A2G |
Lock Nut M6 |
6 |
|
| 6 |
90616-FYBQ-00C |
Socket Screw M6×16 |
2 |
|
| 7 |
80114-FYBQ-000 |
Mounting Plate, Rear
Fender |
2 |
|
| 8 |
80113-FYBQ-000 |
Eccentric Bush, Rear
Fender |
1 |
|
| 9 |
90117-06045-10C |
Socket Screw M6×45 |
1 |
|
| 10 |
GB/T95-6-A2G |
Washer Ø6 |
3 |
|
|
|
|
|
|
