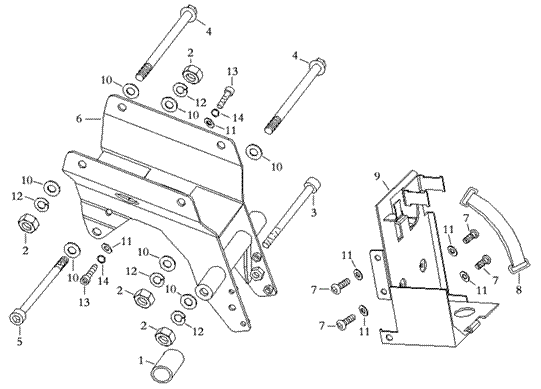

| F15.
ENGINE HOLDER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NO. |
PART NO. |
DESCRIPTION |
QTY |
|
| 1 |
52107-FY20-000 |
Rubber Protector |
1 |
|
| 2 |
GB/T6171-M10*1.25-A2G |
Nut M10×1.25 |
4 |
|
| 3 |
90117-10105-X10C |
Swing Arm Axle
M10×105×1.25 |
1 |
|
| 4 |
GB/T16674.2-M10*1.25*160-A2G |
Bolt M10×160×1.25 |
2 |
|
| 5 |
90117-10118-X10C |
Bolt M10×118×1.25 |
1 |
|
| 6 |
V146100-FYBQ-0B04 |
Engine Holder(black
silver) |
1 |
|
| 7 |
90614-FYBQ-00C |
Screw M6x14 |
4 |
|
| 8 |
95012-FY2-000 |
Battery Fixation
Rubber Band |
1 |
|
| 9 |
31510-FY20-000 |
Battery Holder |
4 |
|
| 10 |
GB/T95-10-A2G |
Washer Ø10 |
7 |
|
| 11 |
GB/T95-6-A2G |
Washer Ø6 |
6 |
|
| 12 |
GB/T93-10-A2G |
Spring Washer Ø10 |
4 |
|
|
|
|
|
|
