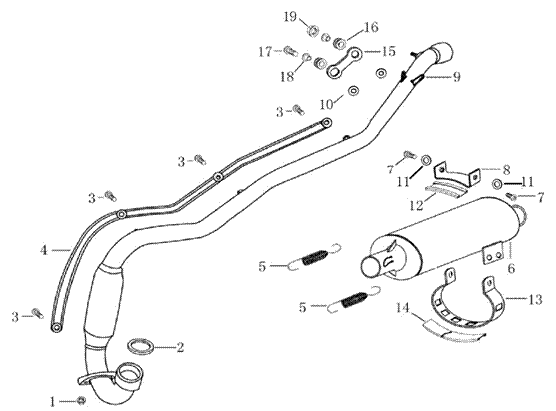

| F13.
EXHAUST PIPE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NO. |
PART NO. |
DESCRIPTION |
QTY |
|
| 1 |
GB/T6187.1-M6-A2G |
Lock Nut M6 |
2 |
|
| 2 |
V070003-FY20-0000 |
Seal Gasket,Exhaust
Pipe |
1 |
|
| 3 |
90608-FYBQ-00C |
Inner Hexagon Bolt
M6×8 |
4 |
|
| 4 |
V072120-FYBQ-0000 |
Protecting
Plate,Exhaust Pipe |
1 |
|
| 5 |
18222-FYBQ-000 |
Spring,Exhaust Pipe |
2 |
|
| 6 |
18220-FYBQ-3YGB |
Rearward,Muffler(Accelerant,Dark
Black) |
1 |
|
| 7 |
90117-06022-10C |
Inner Hexagon Bolt
M6×22 |
2 |
|
| 8 |
84813-FYBQ-000 |
Mounting Bracket |
1 |
|
| 9 |
18210-FYBQ-3YGB |
Exhaust Pipe |
1 |
|
| 10 |
GB/T96.1-6-A2G |
Flat Washer φ6 |
2 |
|
| 11 |
GB/T95-6-A2G |
Flat Washer φ6 |
2 |
|
| 12 |
18224-FY20-000 |
Rubber2(thick/long) |
1 |
|
| 13 |
18225-FYBQ-000 |
exhaust pipe clamp |
1 |
|
| 14 |
18224-FYBQ-000 |
Rubber2(thin,shot) |
1 |
|
| 15 |
18213-FYBQ-000 |
Connector Pad,Exhaust
Pipe |
1 |
|
| 16 |
18293-FYBQ-000 |
Rubber |
2 |
|
| 17 |
90117-06016-10C |
Flange Bolt M6×16 |
1 |
|
| 18 |
90304-FY8-000 |
Large Washer 6 |
2 |
|
| 19 |
GB/T6187.1-M6-A2G |
Lock Nut M6 |
1 |
|
|
|
|
|
|
|
