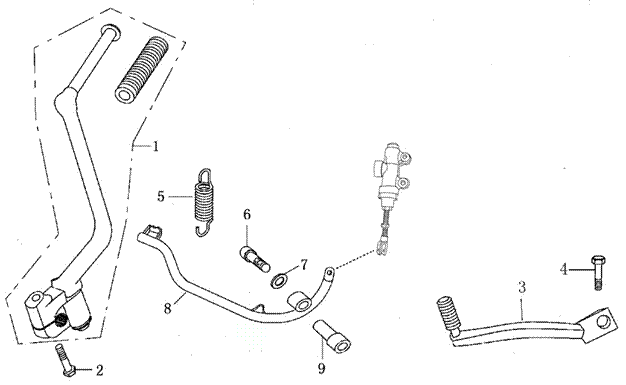

| F12. REAR BRAKE PEDAL | |||||||
|
|
|||||||
| NO. | PART NO. | DESCRIPTION | QTY | ||||
| 1 | 28300-FYBQ-000 | Starting Lever Assy | 1 | ||||
| 2 | GB/T5783-M8*40-A2F | Hexagon Bolt M8*40 | 1 | ||||
| 3 | 23400-FYBQ-000 | Change Lever | 1 | ||||
| 4 | GB/T5783-M6*20-A2G | Hexagon Bolt M6*20 | 1 | ||||
| 5 | 43410-FYBQ-000 | Rear Brake Pedal Spring | 1 | ||||
| 6 | 90117-08065-10C | Inner Hexagon Bolt M8*65 | 1 | ||||
| 7 | GB/T96.1-8-A2G | Flat Washer | 1 | ||||
| 8 | 43400-FYBQ-1YGB | Rear Brake Pedal(Double black silve) | 1 | ||||
| 9 | 43401-FYBQ-000 | Bush,Rear Brake Pedal | 1 | ||||
