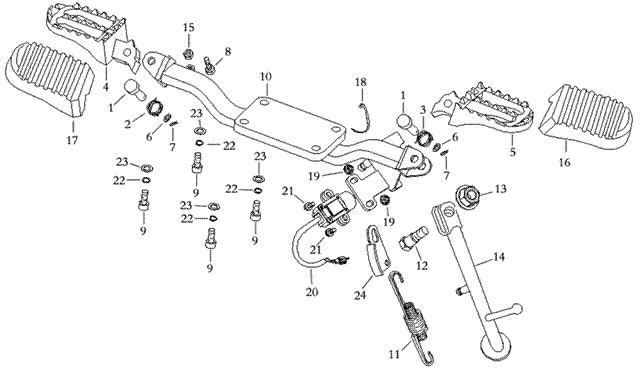

| F11.
FOOTREST |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NO. |
PART NO. |
DESCRIPTION |
QTY |
|
| 1 |
50713-FYBQ-000 |
Front Footrest Pin |
2 |
|
| 2 |
50712-FYBQ-000 |
Front Footrest Spring
(Rh) |
1 |
|
| 3 |
50711-FYBQ-000 |
Front Footrest Spring
(Lh) |
1 |
|
| 4 |
50620-FYBQ-YGB |
Front Footrest (Rh,
Black) |
1 |
|
| 5 |
50610-FYBQ-YGB |
Front Footrest (Lh,
Black) |
1 |
|
| 6 |
GB/T95-8-A2G |
Washer Ø8 |
2 |
|
| 7 |
GB/T91-2*20-A2G |
Cotter Pin 2*20 |
2 |
|
| 8 |
GB/T5783-M6*20-A2G |
Socket Screw M6*20 |
1 |
|
| 9 |
GB/T70.1-HM8*30-A2F |
Bolt M8*30 |
4 |
|
| 10 |
50640-FY20-YGB |
Footrest Holder
(Black silver) |
1 |
|
| 11 |
95015-FY20-000 |
Side Stand Spring
(Double) |
1 |
|
| 12 |
90120-FYT3A-000 |
Side Stand Bolt |
1 |
|
| 13 |
GB/T6187.2-M10*1.25-A2F |
Lock Nut M10*1.25 |
1 |
|
| 14 |
50530-FYBQ-1YGB |
Side Stand (Black
silver) |
1 |
|
| 15 |
GB/T6170-M6-A2G |
Nut M6 |
1 |
|
| 16 |
50661-FYBQ-000 |
Front Footrest Rubber
(Lh) |
1 |
|
| 17 |
50662-FYBQ-000 |
Front Footrest Rubber
(Rh) |
1 |
|
| 18 |
91165-FYGT2-000 |
Binder |
1 |
|
| 19 |
GB/T6187.1-M5-A2G |
Lock Nut M5 |
2 |
|
| 20 |
35030-FY20-000 |
Side Stand Switch |
1 |
|
| 21 |
GB/T9074.4-M5*20-A2G |
Combination Screw
M5x20 |
2 |
|
| 22 |
GB/T93-8-A2F |
Spring Washer Ø8 |
4 |
|
| 23 |
GB/T95-8-A2F |
Washer Ø8 |
4 |
|
| 24 |
35031-FY20-000 |
Switch Holder, Side
Stand |
1 |
|
|
|
|
|
|
|
|
|
