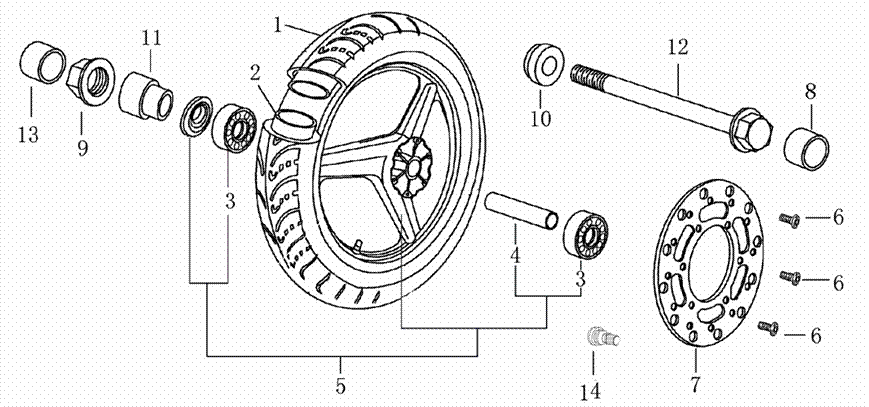

| F09.
FRONT WHEEL |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NO. |
PART NO. |
DESCRIPTION |
QTY |
|
| 1&2 |
V171030-FY20-0000 |
Tire(Tubeless,90/80-16),Front
Wheel |
1 |
|
| 3 |
42657-FYBQ-000 |
Bearing 6202-2RS |
2 |
|
| 4 |
42758-FYBQ-000 |
Bearing Spacer,Front
Wheel |
1 |
|
| 5 |
V171100-FY20-0GR02 |
Front Rim Assy (Gray) |
1 |
|
| 5 |
V171100-FY20-0B03 |
Front Rim Assy (Dark
Black) |
1 |
|
| 5 |
V171100-FY20-1B03 |
Front Rim Assy
(Black) |
1 |
|
| 5 |
V171100-FY20-0A00 |
Front Rim Assy
(Silver) |
1 |
|
| 6 |
45361-FY20-000 |
Bolt M8*30 |
6 |
|
| 7 |
46001-FY20-000 |
Front Brake Disk |
1 |
|
| 8 |
44303-FY3A-000 |
Left Rubber
Sheath,Front Axle |
1 |
|
| 9 |
GB6187-86-14000X-C |
Lock Nut M14 |
1 |
|
| 10 |
44311-FYBQ-000 |
Left Bush,Front Wheel |
1 |
|
| 11 |
44312-FYBQ-000 |
Right Bush,Front
Wheel |
1 |
|
| 12 |
44310-FY20-000 |
Front Axle(with Nut) |
1 |
|
| 13 |
44302-FY11A-000 |
Right Rubber
Sheath,Front Axle |
1 |
|
| 14 |
42753-FY8-000 |
valve spile |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
