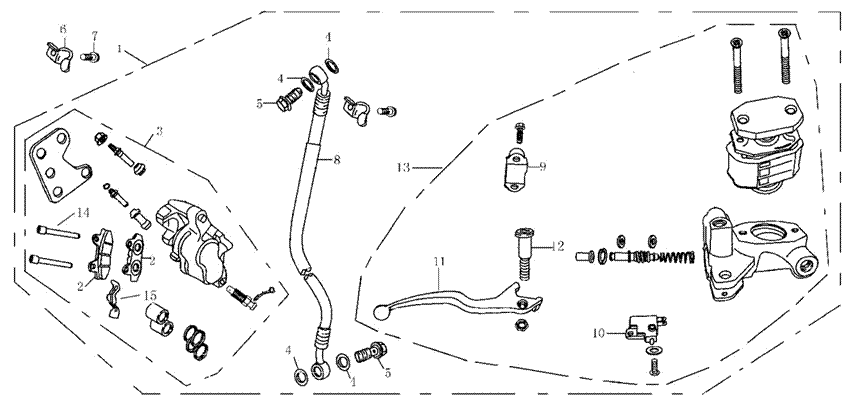

| F07.
FRONT DISC BRAKE ASSY |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NO. |
PART NO. |
DESCRIPTION |
QTY |
|
| 1 |
46000-FY20-00R |
Front Disc Brake Assy
(Red,new) |
1 |
|
| 1 |
46000-FY20-1YGB |
Front Disc Brake Assy
(Dark Black,new) |
1 |
|
| 2 |
46630-FYBQ-000 |
Disc Brake Shoe Comp |
2 |
|
| 3 |
46600-FYBQ-30R |
Mounting Bracket(Red) |
1 |
|
| 3 |
46600-FYBQ-3YGB |
Mounting
Bracket(Black) |
1 |
|
| 4 |
46016-FYBQ-000 |
Washer |
4 |
|
| 5 |
46015-FYBQ-000 |
Bolt With Hole |
2 |
|
| 6 |
46125-FYBQ-000 |
Grip,Disc Brake Tube |
1 |
|
| 7 |
GB/T9074.17-M6*12-A2G |
Combination Bolt
M6*12 |
1 |
|
| 8 |
46300-FY20-000 |
Disc Brake Tube Assy |
1 |
|
| 9 |
46127-FYBQ-000 |
Fixing Block |
1 |
|
| 10 |
46210-FYBQ-000 |
Front Brake Switch
Assy |
1 |
|
| 11 |
46128-FYBQ-000 |
Front Brake Handle |
1 |
|
| 12 |
46126-FYBQ-000 |
Fixing Bolt,Front
Brake Handle |
1 |
|
| 13 |
46100-FYBQ-000 |
Master Cylinder,Disc
Brake |
1 |
|
| 14 |
46629-FYBQ-000 |
Bolt,Brake Pad |
2 |
|
| 15 |
46636-FYBQ-000 |
Plate Stretch |
1 |
|
|
|
|
|
|
|
|
|
|
|
