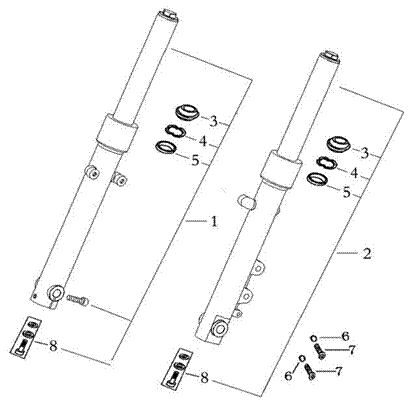

| F06. FRONT SHOCK ABSORBER ASSY | ||||
|
|
||||
| NO. | PART NO. | DESCRIPTION | QTY | |
| 1 | 51400-FY20-000 | Front Shock Absorber Assy (Right) | 1 | |
| 2 | 51500-FYBQ-000 | Front Shock Absorber Assy (Left) | 1 | |
| 3 | 51425-FYBQ-000 | Dustproof Sheath,Shock Absorber | 2 | |
| 4 | 90601-FYBQ-000 | Check Ring | 2 | |
| 5 | 51490-FYBQ-000 | Seal Comp,Front Shock Absorber | 2 | |
| 6 | GB/T93-10-A2G | Spring Washerφ10 | 2 | |
| 7 | 90117-10030-X10C | Inner Hexagon Bolt M10*30*1.25 | 2 | |
| 8 | 51495-FYBQ-000 | SPECIAL Bolt | 2 | |
