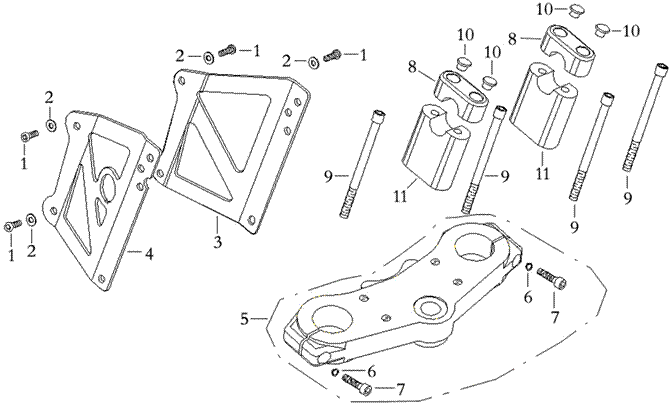

| F05. UPPER BRIDGE | |||||||||
|
|
|||||||||
| NO. | PART NO. | DESCRIPTION | QTY | ||||||
| 1 | 90612-FYBQ-00C | Socket Screw M6*12 | 4 | ||||||
| 2 | GB/T95-6-A2G | Washerφ6 | 4 | ||||||
| 3 | 51620-FY20-000 | Right Bracket, Headlamp | 1 | ||||||
| 4 | 51610-FY20-000 | Left Bracket, Headlamp | 1 | ||||||
| 5 | 53231-FYBQ-00B | Upper Bridge | 8 | ||||||
| 6 | GB/T93-8-A2F | Spring Washer φ8 | 2 | ||||||
| 7 | GB/T70.1-M8*35-A2F | Bolt M8×35 | 2 | ||||||
| 8 | 53111-FYBQ-100 | Upper Holder, Steering Bar | 2 | ||||||
| 9 | 90117-08105-10C | Bolt M8*105 | 4 | ||||||
| 10 | 53113-FYBQ-000 | Plastic Cap | 4 | ||||||
| 11 | 53112-FYBQ-100 | Lower Holder, Steering Bar | 2 | ||||||
