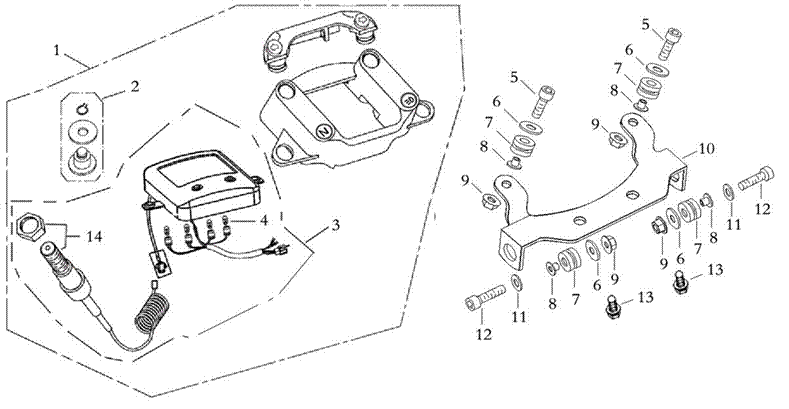

| F02. SPEEDOMETER ASSY | |||||||||
|
|
|||||||||
| NO. | PART NO. | DESCRIPTION | QTY | ||||||
| 1 | 37200-FY20-200 | Speedometer Assy | 1 | ||||||
| 2 | 37220-FYBQ-200 | Magnet Comp | 1 | ||||||
| 3 | 37270-FY20-000 | Electronic Speedometer | 1 | ||||||
| 4 | 37241-FYBQ-000 | Bulb | 4 | ||||||
| 5 | 90117-06022-10C | Socket Screw M6*22 | 2 | ||||||
| 6 | GB/T96.1-6-A2G | Washer Ø6 | 4 | ||||||
| 7 | 18293-FYBQ-000 | Rubber Ring | 4 | ||||||
| 8 | 90304-FY8-000 | Bush Ø6 | 4 | ||||||
| 9 | GB/T6187.1-M6-A2G | Lock Nut M6 | 4 | ||||||
| 10 | 37210-FY20-000 | Mounting Bracket, Speedometer | 1 | ||||||
| 11 | GB/T95-6-A2G | Washer Ø6 | 2 | ||||||
| 12 | 90117-06025-10C | Screw M6*25 | 2 | ||||||
| 13 | GB/T9074.17-M8*16-A2G | Bolt with Washer M8*16 | 2 | ||||||
| 14 | V195030-FY20-0000 | Influence Cable,Electronic Speedometer | 1 | ||||||
