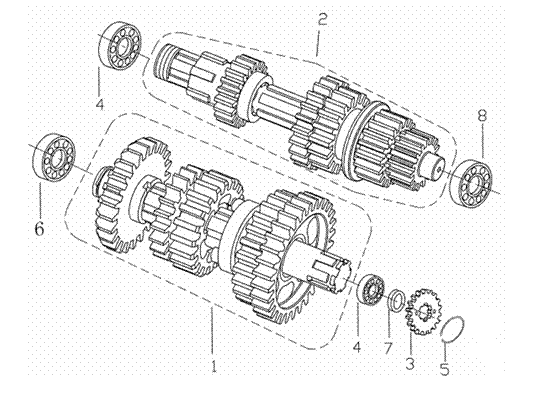

| E12. SPEED-DOWN MECHANISM | |||||||
|
|
|||||||
| NO. | PART NO. | DESCRIPTION | QTY | ||||
| 1 | 23600-FYBF-000 | Countershaft Comp | 1 | ||||
| 2 | 23500-FYBF-000 | Main Shaft Comp | 1 | ||||
| 3 | 23682-FYBF-000 | main drive sprocket(11 gear) | 1 | ||||
| 4 | GB/T276-94-6203 | bearing 6203 | 2 | ||||
| 5 | GB894.1-86-15001 | flexible ring 15.5*1.2 | 1 | ||||
| 6 | GB/T276-94-6201 | bearing 6201 | 1 | ||||
| 7 | 90801-17029-005 | Oil Seal 17*29*5 | 1 | ||||
| 8 | GB/T276-94-6101 | Bearing 6101 | 1 | ||||
