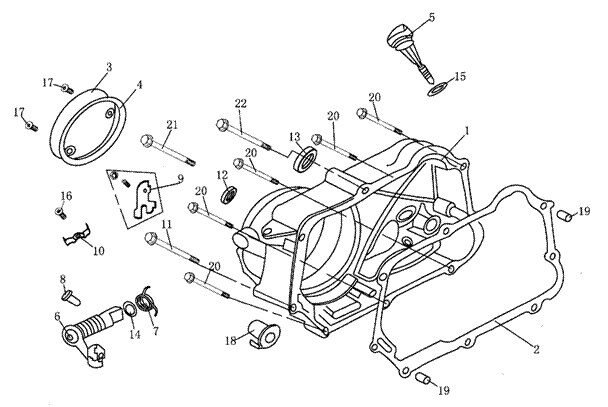

| E10.
R CRANKCASE COVER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NO. |
PART NO. |
DESCRIPTION |
QTY |
|
| 1 |
11310-FYBF-00B |
right crankcase
cover(black) |
1 |
|
| 1 |
11300-FYBF-00A |
right crankcase
cover(silver gray) |
1 |
|
| 2 |
11393-FYBF-000 |
Seal Washer,Right
Crankcase Cover |
1 |
|
| 3 |
11356-FYBF-000 |
adjusting
cover,clutch |
1 |
|
| 4 |
11357-FYBF-000 |
gasket,clutch
adjusting cover |
1 |
|
| 5 |
15155-FYBF-000 |
oil gauge |
1 |
|
| 6 |
21421-FYBF-000 |
clutch
camshaft(chromeplate) |
1 |
|
| 7 |
21416-FYBF-000 |
spring, camshaft |
1 |
|
| 8 |
21411-FYBF-000 |
fixing pin,camshaft |
1 |
|
| 9 |
21448-FYBF-000 |
clutch pressed plate |
1 |
|
| 10 |
21449-FYBF-000 |
fixing plate, clutch |
1 |
|
| 11 |
GB/T16674.1-M6*100-F5J |
hexad bolt M6*100 |
1 |
|
| 12 |
90801-11021-004 |
oil sealed11*21*4 |
1 |
|
| 13 |
90801-13024-005 |
oil sealed13.7*24*5 |
1 |
|
| 14 |
90701-14001-005 |
o-ring washer14*1.5 |
1 |
|
| 15 |
90701-18003-006 |
O-ring 18*3.6 |
1 |
|
| 16 |
GB/T819.2-M6*16-A2G |
crossed recessed
screw6*16 |
1 |
|
| 17 |
GB/T820-M5*12-A2F |
crossed half recessed
screwM5*12 |
2 |
|
| 18 |
21451-FYBF-000 |
handspike comp,clutch |
1 |
|
| 19 |
90411-08012-000 |
pinφ8*12 |
2 |
|
| 20 |
90103-06040-00F5J |
hexad bolt M6*40 |
5 |
|
| 21 |
GB/T16674.1-M6*55-F5J |
hexad bolt M6*55 |
1 |
|
| 22 |
90103-06065-00F5J |
hexad bolt M6*65 |
1 |
|
|
|
|
|
|
|
