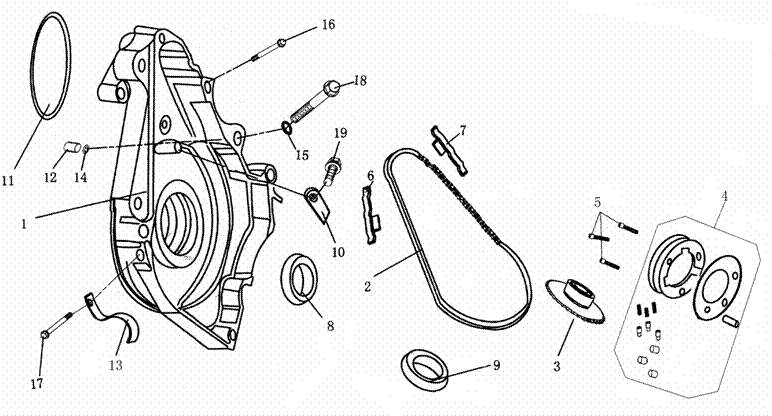

| E09. ELECTRIC STARTING SYSTEM | |||||||||
|
|
|||||||||
| NO. | PART NO. | DESCRIPTION | QTY | ||||||
| 1 | 11251-FYBF-000 | Cover Plate,Electricity Starting Motor | 1 | ||||||
| 2 | 31210-FYBF-000 | Drive sprocket wheel | 1 | ||||||
| 3 | 28121-FYBF-000 | Driven sprokcet wheel | 1 | ||||||
| 4 | 28120-FYBF-000 | one-way isolator | 1 | ||||||
| 5 | GB/T70.1-M6*12-A3H | inner hexad boltM6*12 | 3 | ||||||
| 6 | 28134-FYBF-000 | Tension Plate,Chain | 1 | ||||||
| 7 | 28132-FYBF-000 | Guide Plate,Chain | 1 | ||||||
| 8 | 90801-30042-004 | Seal 30*42*4.5 | 1 | ||||||
| 9 | 90801-18030-005 | Seal 18.9*30.5 | 1 | ||||||
| 10 | 23802-FYBF-000 | Fixing Plate | 1 | ||||||
| 11 | 90701-02107-000 | O-ring 107*2 | 1 | ||||||
| 12 | 90411-08014-000 | Dowel Pin 8*14 | 1 | ||||||
| 13 | 90561-FYBF-000 | Cable Clip,Motor | 1 | ||||||
| 14 | 90701-08002-000 | sealed washer 8*2 | 1 | ||||||
| 15 | 90301-06010-10AL0 | aluminium washer 6*10*1 | 1 | ||||||
| 16 | GB/T16674.1-M6*105-F5J | hexad bolt M6*105 | 1 | ||||||
| 17 | 90103-06025-00F5J | hexad bolt M6*25 | 1 | ||||||
| 18 | GB/T16674.1-M6*35-F5J | hexad bolt M6*35 | 1 | ||||||
| 19 | 90103-06012-00F5J | hexad bolt M6*12 | 1 | ||||||
