| E08.

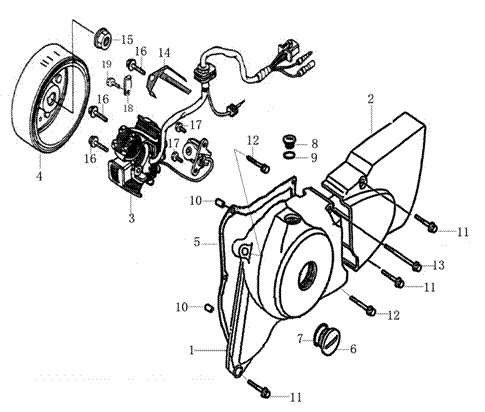

LEFT COVER, MAGNETO |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NO. |
PART NO. |
DESCRIPTION |
QTY |
| 1 |
11400-FYBF-00A |
left crankcase cover |
1 |
| 1 |
11400-FYBF-00B |
left crankcase cover |
1 |
| 2 |
11430-FYBF-00A |
left drive sprocket
cover |
1 |
| 2 |
11430-FYBF-00B |
left drive sprocket
cover |
|
| 3 |
31120-FYBF-000 |
stator comp. |
1 |
| 4 |
31110-FYBF-000 |
rotor comp. |
1 |
| 5 |
11495-FYBF-000 |
Seal,Left Crankcase
Cover |
1 |
| 6 |
11446-FYBF-000 |
Timing Side Hole
Cover |
1 |
| 7 |
90701-27002-000 |
O-ring 27*2 |
1 |
| 8 |
11445-FYBF-000 |
Timing Uper Hole
Cover |
1 |
| 9 |
90701-13002-000 |
o-ring washer13.8*2.5 |
1 |
| 10 |
90411-08014-000 |
Dowel Pin 8*14 |
2 |
| 11 |
90103-06025-00F5J |
hexad bolt M6*25 |
3 |
| 12 |
90103-06032-00F5J |
hexad bolt M6*32 |
2 |
| 13 |
90103-06050-00F5J |
hexad bolt M6*50 |
1 |
| 14 |
31116-FYBF-000 |
output cale
plate,magnetoelectricity motor |
1 |
| 15 |
GB/T6177.2-2000-10000X |
Flange Nut M10 |
1 |
| 16 |
90103-06020-00F5J |
hexad bolt M6*20 |
3 |
| 17 |
GB/T818-M5*16-F5J |
Screw M5*16 |
2 |
| 18 |
31117-FYBF-000 |
limiting plate,
triggering cable |
1 |
| 19 |
GB818-2000-05005-B |
Screw M5*5 |
1 |
|
|
|
|
