| E05.

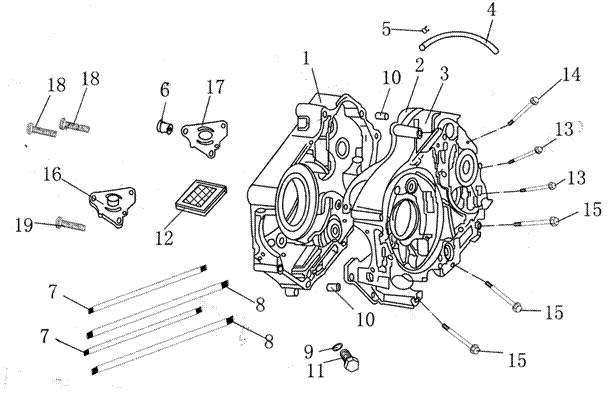

CRANKCASE, OIL PUMP |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NO. |
PART NO. |
DESCRIPTION |
QTY |
|
| 1 |
11110-FYBF-000 |
Right Crankcase Body |
1 |
|
| 2 |
11191-FYBF-000 |
Seal Gasket,Left
Crankcas |
1 |
|
| 3 |
11210-FYBF-000 |
Left Crankcase Body |
1 |
|
| 4 |
11211-FYBF-000 |
Vent Pipe,Crankcase |
1 |
|
| 5 |
11212-FYBF-000 |
Pipe Clip,Vent Pipe |
1 |
|
| 6 |
15112-FYBF-000 |
Bush,Oil Pump
Sprocket Wheel |
1 |
|
| 7 |
GB/T899-M6*178-A3H |
double headed bolt
M6*188 |
2 |
|
| 8 |
GB/T899-M6*186-A3H |
Stud Bolt M6*196 |
2 |
|
| 9 |
90301-12020-15AL0 |
aluminium
washer12*20*1.5 |
1 |
|
| 10 |
90411-10014-000 |
Dowel Pin 10*14 |
2 |
|
| 11 |
GB/T5789-96-12016X-C |
hexad flange bolt
M12*1.5*16 |
1 |
|
| 12 |
15160-FYBF-000 |
Fuel Fillter Screen
Comp |
1 |
|
| 13 |
90103-06060-00F5J |
hexad bolt M6*60 |
2 |
|
| 14 |
90103-06050-00F5J |
hexad bolt M6*50 |
1 |
|
| 15 |
90103-06065-00F5J |
hexad bolt M6*65 |
3 |
|
| 16 |
15000-FYBF-000 |
Fuel Pump Assy |
1 |
|
| 17 |
15116-FYBF-000 |
Seal Gasket,Oil Pump
Body |
1 |
|
| 18 |
GB/T818-M6*16-A2F |
Screw M6*16 |
2 |
|
| 19 |
GB/T818-M6*22-A2F |
Screw M6*22 |
1 |
|
|
|
|
|
|
|
|
