| E04.

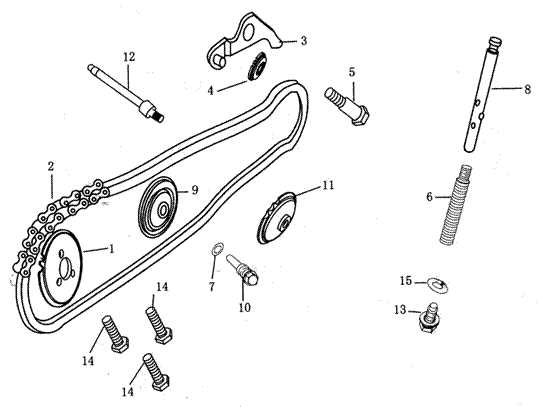

TIMING CHAIN, TENSIONER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NO. |
PART NO. |
DESCRIPTION |
QTY |
|
| 1 |
14109-FYBF-000 |
Timing Driven
Sprocket Wheel |
1 |
|
| 2 |
14440-FYBF-000 |
Timing Chain |
1 |
|
| 3 |
14530-FYBF-000 |
Chain Tension Arm
Comp |
1 |
|
| 4 |
14541-FYBF-000 |
Chain Tension Roll
Wheel |
1 |
|
| 5 |
14542-FYBF-000 |
Mandrel,Chain Tension
Arm |
1 |
|
| 6 |
14543-FYBF-000 |
Spring,Chain Tension
Bar |
1 |
|
| 7 |
90301-08015-15AL0 |
Aluminum Washer
φ8*15*1.5 |
1 |
|
| 8 |
14510-FYBF-000 |
Chain Tension Bar
Comp |
1 |
|
| 9 |
14560-FYBF-000 |
Guide
Trolley,Sprocket Wheel |
1 |
|
| 10 |
14561-FYBF-000 |
Bolt Shaft,Guide
Trolley(chromeplate) |
1 |
|
| 11 |
15133-FYBF-000 |
Driven Sprocket
Wheel,Oil Pump |
1 |
|
| 12 |
15114-FYBF-000 |
Sprocket Wheel
Shaft,Oil Pump |
1 |
|
| 13 |
14562-14012-000B |
Tension Bolt Shaft
M14*12 |
1 |
|
| 14 |
GB/T5783-M5*12-A2F |
hexad boltM5*12 |
3 |
|
| 15 |
90301-14020-15AL0 |
aluminium
washerφ14*20*1.5 |
1 |
|
|
|
|
|
|
|
