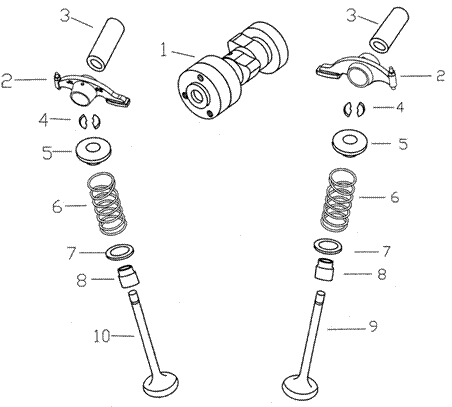

| E03. VALVE SYSTEM | |||||
|
|
|||||
| NO. | PART NO. | DESCRIPTION | QTY | ||
| 1 | 14100-FYBF-000 | Cam Shaft Comp | 1 | ||
| 2 | 14430-FYBF-000 | Rocker Arm Comp | 2 | ||
| 3 | 14450-FYBF-000 | Rocker Arm Shaft | 2 | ||
| 4 | 14781-FYBF-000 | Clip,Valve | 4 | ||
| 5 | 14771-FYBF-000 | Socket,Valver Spring | 2 | ||
| 6 | 14751-FYBF-000 | Outer Spring,Valver | 2 | ||
| 7 | 28103-17023-1000K | Washer,Outer Spirng of Valve | 2 | ||
| 8 | 14790-FYBF-000 | Oil Valve Comp | 2 | ||
| 9 | 14711-FYBF-000 | Intake Valve | 1 | ||
| 10 | 14721-FYBF-000 | Exhaust Valve | 1 | ||
