2009 Peirspeed RM50 - Parts Manual

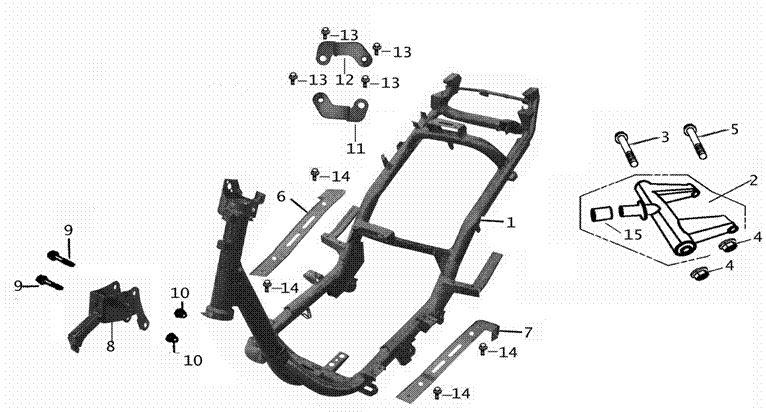

F23 - FRAME

NO

PART NO

DESCRIPTION

REQ QTY

1

AAF-090100-0000

Frame

1

2

AAF-100007-0000

Hang frame

1

3

AS-330404-0100

Shaft A

1

4

GB6187-86-10000X-B

Lock nut M10*1.25

1

5

AAF-330404-0000

Shaft B

1

6

AAF-102012-0201

Bracket, Right footrest

1

7

AAF-102012-0101

Bracket, Left footrest

1

8

AAF-110011-0001

Bracket, front panel

1

9

GB5789-86-06050-B

Flange bolt M6*50

2

10

GB6177-86-06000-K

Flange bolt M6

2

11

AAF-110000-0112

Left, Rear fender bracket

1

12

AAF-110000-0212

Right, rear fender bracket

1

13

GB5787-86-06012-B

Flange bolt M6*12

4

14

GB5789-86-06012-B

Flange bolt M6*12

4

15

AAF-340031-0004

Buffer rubber

1
