2009 Peirspeed RM50 - Parts Manual

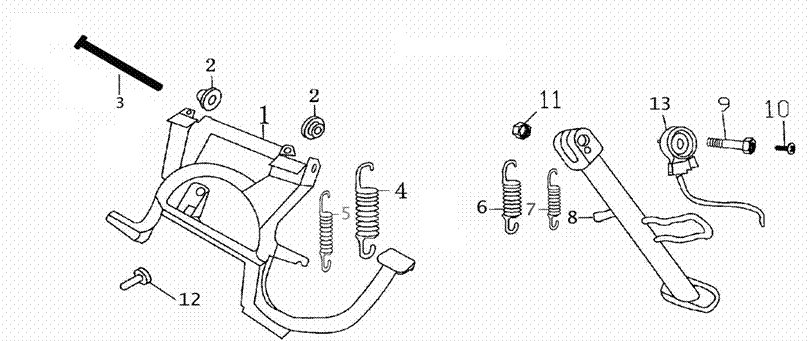

F18 - CENTER STAND-KICKSTAND

主支架

NO

PART NO

DESCRIPTION

REQ QTY

1

AAF-100002-0000

Main kickstand

1

2

HP1-100002-0000

bush, kickstand

2

3

AS-330403-0000

shaft

1

4

AAF-180100-0003

outer spring

1

5

AAF-180100-0002

Inner spring

1

6

AAF-180200-0003

Outer spring, side stand

1

7

AAF-180200-0002

Inner spring, side stand

1

8

AAF-100004-0000

side stand

1

9

90120-FYT5-500

Bolt, side stand

1

10

GB5789-86-06016-K

Flange bolt M6*16

1

11

GB6170-86-10000X-B

Nut M10*1.25

1

12

AAF-340008-0001

Buffer rubber

1

13

AS-250400-0000

flameout switch

1
