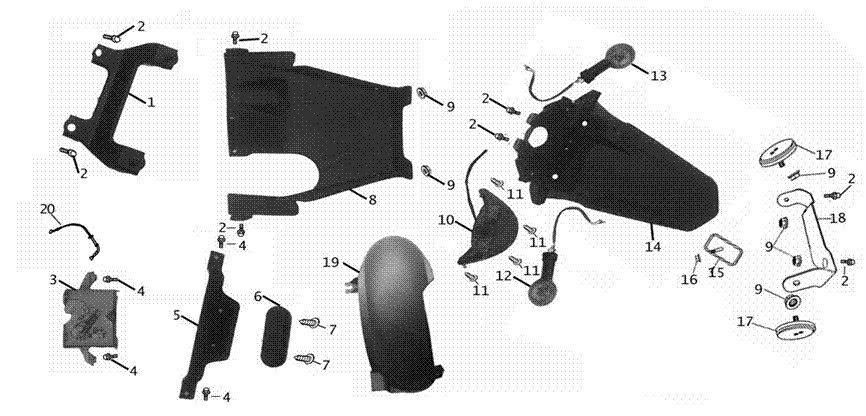

| F15 - REAR FENDER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NO |
PART NO |
DESCRIPTION |
REQ QTY |
|
| 1 |
AAF-110000-0012 |
Rear fender bracket |
1 |
|
| 2 |
GB5789-86-06016-K |
flange bolt M6*16 |
6 |
|
| 3 |
AAF-110010-0000 |
lock set, seat |
1 |
|
| 4 |
GB5789-86-06012-K |
Bolt M6*12 |
4 |
|
| 5 |
AAF-110010-0005 |
Rubber bracket, seat |
1 |
|
| 6 |
AAF-340041-0002 |
Seat rubber |
1 |
|
| 7 |
GB845-85-48016-K |
Tapping screw
ST4.8*16 |
2 |
|
| 8 |
AAF-240004-0100 |
Heat-insulation
plate, tank |
1 |
|
| 9 |
GB6177-86-06000-K |
Flange nut M6 |
4 |
|
| 10 |
AAF-260200-0000-D |
Tail light (DOT_ |
1 |
|
| 11 |
GB845-85-42012-K |
Tappping screw
ST4.2×12 |
4 |
|
| 12 |
AAC-260401-0000-D |
Left rear
turnlight(amber, DOT) |
1 |
|
| 13 |
AAC-260402-0000-D |
Rear rear
turnlight(amber, DOT) |
1 |
|
| 14 |
AAF-240004-0003 |
Rear fender |
1 |
|
| 15 |
AAF-340018-0200 |
Rear reflector(red) |
1 |
|
| 16 |
GB6177-86-05000-K |
Flange nut M5 |
1 |
|
| 17 |
AAF-340018-0600 |
Side reflector |
2 |
|
| 18 |
AAF-110000-0046 |
rear reflector
bracket |
1 |
|
| 19 |
AAF-240004-0002 |
fender, rear wheel |
1 |
|
| 20 |
A7-170700-0000-51 |
lock cable, seat |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
