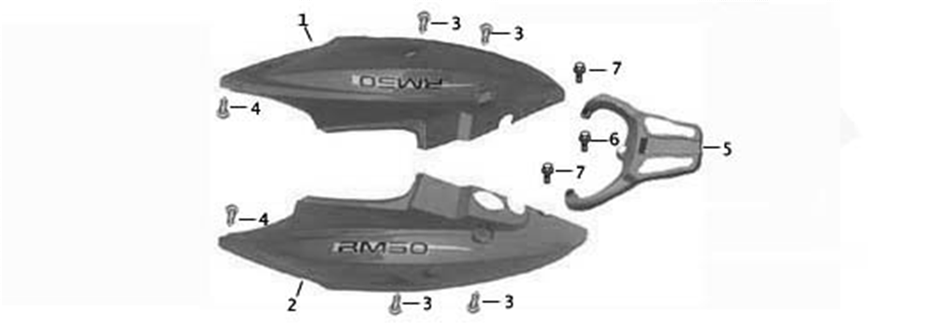

| F14 - REAR PANELS |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NO |
PART NO |
DESCRIPTION |
REQ QTY |
|
| 1 |
AAF-230002-0000-A |
Right side
cover(rough) |
1 |
|
| |
AAF-230002-0000-04A |
Right side
cover(blue) |
1 |
|
| |
AAF-230002-0000-32A |
Right side
cover(orange) |
1 |
|
| |
AAF-230002-0000-06A |
Right side
cover(silver) |
1 |
|
| 2 |
AAF-230001-0000-A |
Left side
cover(rought |
1 |
|
| |
AAF-230001-0000-04A |
Left side cover(blue) |
1 |
|
| |
AAF-230001-0000-32A |
Left side
cover(orange) |
1 |
|
| |
AAF-230001-0000-06A |
Left side
cover(silver) |
1 |
|
| 3 |
GB845-85-42016-K |
Tapping screw
ST4.2×16 |
4 |
|
| 4 |
GB845-85-48012-K |
Tapping screw
ST4.8×12 |
2 |
|
| 5 |
AAF-130101-0000-A |
Rear carrier (rough) |
2 |
|
| |
AAF-130101-0001-38A |
Rear carrier(silver) |
1 |
|
| 6 |
GB5787-86-08020-B |
Flange bolt M8*20 |
1 |
|
| 7 |
GB5787-86-08035-B |
Flange bolt M8*20 |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
