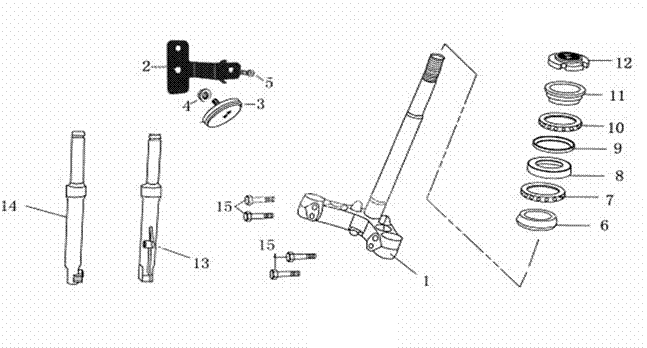

| F09 - FORK-STEERING COLUMN |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NO |
PART NO |
DESCRIPTION |
REQ QTY |
|
| 1 |
AAF-070100-0000 |
Steering column assy |
1 |
|
| 2 |
AAF-112000-0040 |
Bracket, Fr reflector |
2 |
|
| 3 |
AAF-340018-0500 |
Side reflector |
2 |
|
| 4 |
GB6177-86-06000-K |
Flange nut M6 |
2 |
|
| 5 |
GB5789-86-06016-K |
Flange bolt M6*16 |
2 |
|
| 6 |
HE1-070101-0004 |
bottom bowl |
1 |
|
| 7 |
HE1-070101-0200 |
fixing bracket,
bottom ball |
1 |
|
| 8 |
HE1-070101-0002 |
frame bottom bowl |
1 |
|
| 9 |
HE1-070101-0001 |
frame up bowl |
1 |
|
| 10 |
HE1-070101-0100 |
fixing bracket, upper
ball |
1 |
|
| 11 |
HE1-070101-0003 |
Upper ball |
1 |
|
| 12 |
HE1-070103-0000 |
Tight nut |
1 |
|
| 13 |
AAF-050100-0200 |
Fr Right shock |
1 |
|
| 14 |
AAF-050100-0100 |
Fr Left shock |
1 |
|
| 15 |
GB9074.17-88-08055-B |
GB9074.17 M8*55 |
4 |
|
|
|
|
|
|
|
|
|
