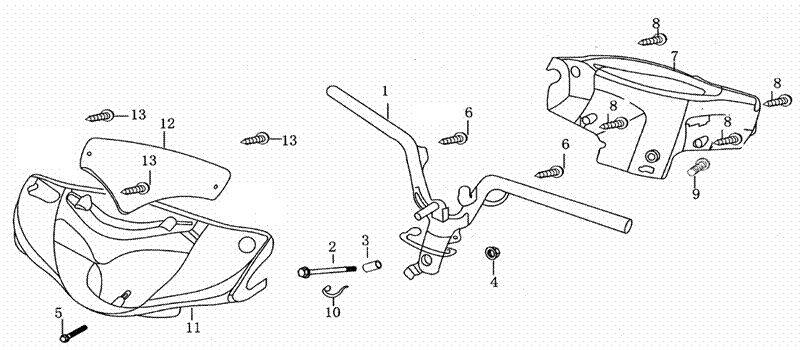

| F05 - HANDLEBAR ASSY |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NO |
PART NO |
DESCRIPTION |
REQ QTY |
|
| 1 |
AAF-060100-0000 |
Handlebar |
1 |
|
| 2 |
GB5787-86-10050X-B |
Bolt M10*1.25*50 |
1 |
|
| 3 |
HP1-070109-0000 |
Bush |
1 |
|
| 4 |
GB6187-86-10000X-B |
Locknut M10×1.25 |
1 |
|
| 5 |
GB9074.5-88-05025-K |
Screw M5*25 |
1 |
|
| 6 |
GB845-85-42012-K |
screw ST4.2*12 |
2 |
|
| 7 |
AAF-240001-0001 |
Rear cover, handlebar |
1 |
|
| 8 |
GB845-85-42012-K |
screw ST4.2*12 |
4 |
|
| 9 |
GB5789-86-06016-K |
GB5789 M6*16 |
1 |
|
| 10 |
HA2-340003-0200 |
band |
6 |
|
| 11 |
AAF-230007-0002-A |
front cover,
handlebar (rough) |
1 |
|
| |
AAF-230007-0002-04A |
front cover,
handlebar(blue) |
1 |
|
| |
AAF-230007-0002-32A |
front cover,
handlebar(orange) |
1 |
|
| |
AAF-230007-0002-06A |
front cover,
handlebar(silver) |
1 |
|
| 12 |
AAF-230003-0002 |
Guide cover |
1 |
|
| 13 |
GB845-85-42012-K |
screw ST4.2*12 |
3 |
|
|
|
|
|
|
|
|
|
|
|
