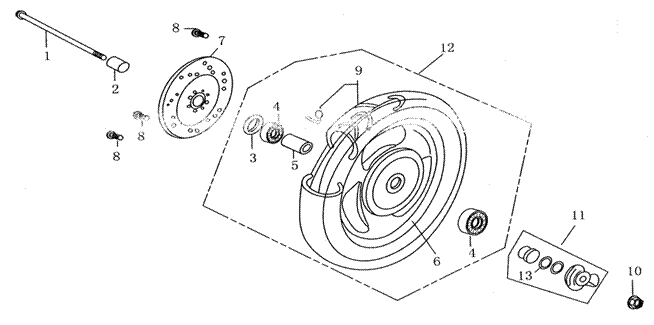

| F04 - FRONT WHEEL ASSY |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NO |
PART NO |
DESCRIPTION |
REQ QTY |
|
| 1 |
AAF-040402-0301 |
Front Axle Assy |
1 |
|
| 2 |
AAF-040402-0302 |
Left Bush,Front Axle |
1 |
|
| 3 |
AAF-041010-0300 |
oil seal,Front
Axle |
1 |
|
| 4 |
AAF-041010-0000 |
Bearing6201,Front
Wheel |
2 |
|
| 5 |
AAF-041010-0400 |
inner spacer,FR.Wheel |
1 |
|
| 6 |
AAF-040401-0000-D |
Front Wheel Rim
Assembly |
1 |
|
| 7 |
AAF-380100-0001 |
Brake Plate |
1 |
|
| 8 |
AAF-380100-0300 |
Front Brake plate nut |
3 |
|
| 9 |
V171030-FYBT5-0000 |
Tire(3.50-10,4PR) |
1 |
|
| 10 |
GB6187-86-12000-B |
Lock nut M6 |
1 |
|
| 11 |
AAF-040102-0000 |
Counter |
1 |
|
| 13 |
AAF-040401-0203 |
Oil seal,count
gear |
1 |
|
|
|
|
|
|
|
|
|
