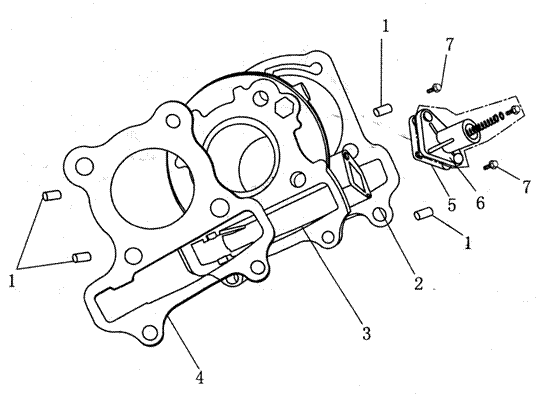

E14 - CYLINDER BLOCK
汽缸体
NO PART NO DESCRIPTION REQ QTY
1 90411-08014-001 Dowel Pin 814(φ7.0) 4
2 12191-FYBQ-010 Gasket,Cylinder Block 1
3 12100-FYBQ-000 Cylinder Block 1
4 12391-FYBQ-000 Gasket,Cylinder Head 1
5 14524-FYBQ-000 Timing Chain Tensioner Gasket 1
6 14520-FYBQ-000 Timing Chain Tensioner Assembly 1
7 90103-06018-00A2F Flange Bolt M6*18 2
