2009 Peirspeed Key Largo - Parts Manual

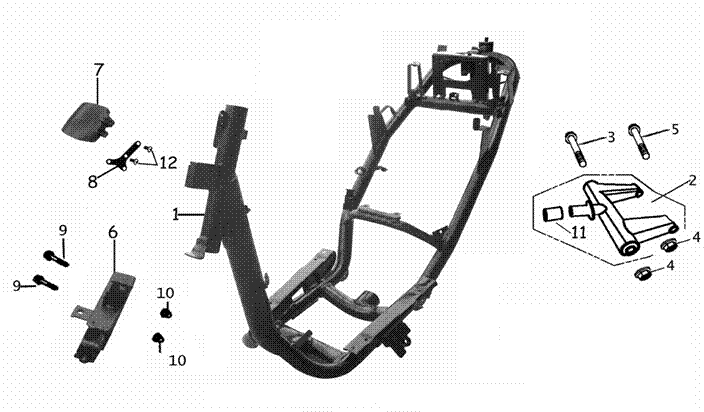

F23 - FRAME

NO

PART NO

DESCRIPTION

REQ QTY

1

AAC-090100-0000

Frame

1

2

AAC-100007-0000

hanger

1

3

AS-330404-0100

hanger shaft A

1

4

GB6187-86-10000X-B

Lock nut M10*1.25

1

5

AS-330404-0200

Hanger shaft B

1

6

AAC-110011-0000

Horn bracket

1

7

V024315-FYBT5-0000

Rear S fender

1

8

80122-FYBT-000

Bracket, small fender

1

9

GB5789-86-06030-B

Flange bolt M6*30

2

10

GB6177-86-06000-K

Flange nut M6

2

11

AAF-340031-0004

Hanger buffer rubber

1

12

GB/T9074.1-M5*16-4.8-S3-L-A2F

Cross screw GB9074.1 M5*16

2
