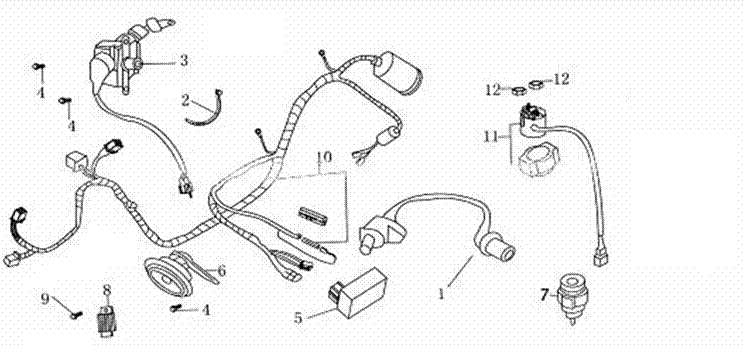

F22 - HORN-RECTIFIER-FLASHER
电器件
NO PART NO DESCRIPTION REQ QTY
1 30510-FYBQ-000 Ignition coil 1
2 HA2-340003-0200 band 1
3 AAC-270000-0000 lock set  1
4 GB5789-86-06016-B Flange bolt M6*16 2
5 E123001-FYBQ-0000 CDI 1
6 HE1-300100-0100 Horn 1
7 HP1-030600-0000 Flasher 1
8 31600-FYBQ-200 Rectifier 1
9 GB5789-86-06012-B Flange bolt M6*12 1
10 AAC-280400-0000 Main wireness 1
11 AS-030300-0000 Start relay 1
12 GB6177-86-06000-K Flange nut M6 2
