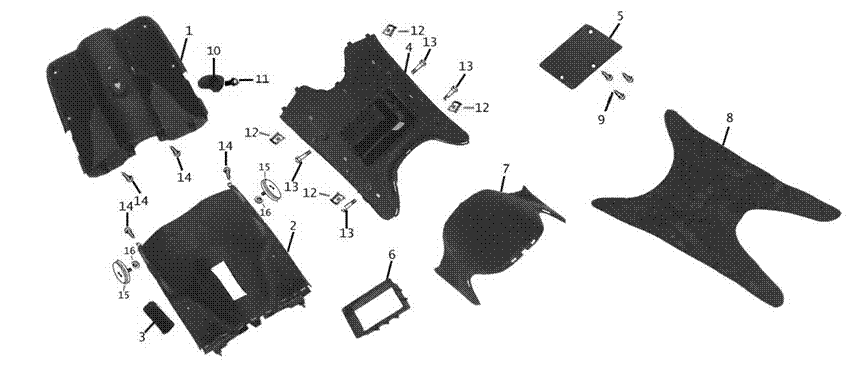

| F08 - LEG SHIELD PANELS |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NO |
PART NO |
DESCRIPTION |
REQ QTY |
|
| 1 |
AAC-240002-0005 |
FR.Luggage Box A |
1 |
|
| 2 |
AAC-240002-0006 |
FR.Luggage Box B |
1 |
|
| 3 |
AAC-240002-0003 |
Number cover |
1 |
|
| 4 |
AAC-240005-0001 |
Footboard |
1 |
|
| 5 |
AAC-240005-0002 |
Battery Cover |
1 |
|
| 6 |
AAC-240005-0006 |
Battery Box |
1 |
|
| 7 |
AAC-240003-0002 |
Center Cover |
1 |
|
| 8 |
AAC-340027-0001 |
Footboard Rubber PAD |
1 |
|
| 9 |
GB845-85-42016-K |
Tapping Screw
ST4.2×16 |
3 |
|
| 10 |
AAC-240002-0004 |
hook for FR.Luggage
Box |
1 |
|
| 11 |
FH-90111-06016-K |
HexagonalFlange Bolt |
1 |
|
| 12 |
FH-330601-0042 |
Spring clip4.2 |
4 |
|
| 13 |
GB/T16674.1-M6*50-A2F |
GB5789 M6*50 |
2 |
|
| 14 |
GB845-85-48012-K |
Tapping ScrewST4.8*12 |
1 |
|
| 15 |
AAF-340018-0500 |
side reflector,R |
2 |
|
| 16 |
GB6177-86-06000-K |
Flange nut M6 |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
