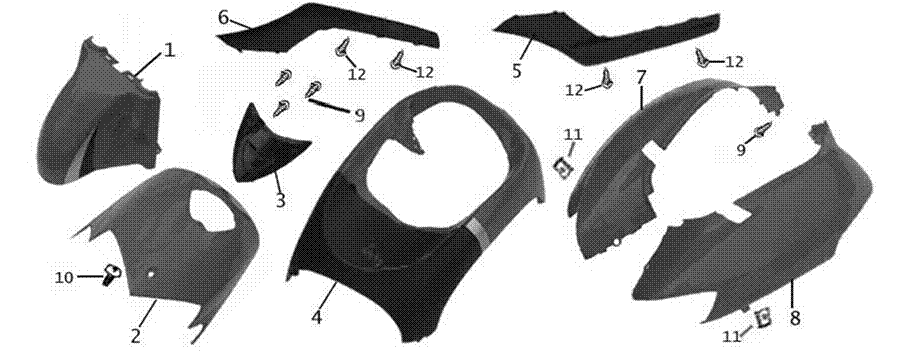

| F07 - FRONT-SIDE PANELS |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NO |
PART NO |
DESCRIPTION |
REQ QTY |
|
| 1 |
AAC-230007-0008-A |
FR,Part of
FR.Fender(rough) |
1 |
|
| |
AAC-230007-0008-01A |
FR,Part of
FR.Fender(red) |
1 |
|
| |
AAC-230007-0008-24A |
FR,Part of
FR.Fender(yellow) |
1 |
|
| |
AAC-230007-0008-02A |
FR,Part of
FR.Fender(black) |
1 |
|
| 2 |
AAC-230007-0001-A |
Front cover(rough) |
1 |
|
| |
AAC-230007-0001-01A |
Front cover(red) |
1 |
|
| |
AAC-230007-0001-24A |
Front cover(yellow) |
1 |
|
| |
AAC-230007-0001-02A |
Front cover(black) |
1 |
|
| 3 |
AAC-232013-0110-A |
Decorative
plate(rought) |
1 |
|
| |
AAC-232013-0110-34A |
Decorative
plate(black) |
1 |
|
| 4 |
AAC-230007-0003-A |
FR.Support
plate(rough) |
1 |
|
| |
AAC-230007-0003-01A |
FR.Support
plate(red/black) |
1 |
|
| |
AAC-230007-0003-24A |
FR.Support
plate(yellow/black) |
1 |
|
| |
AAC-230007-0003-02A |
FR.Support
plate(black/black) |
1 |
|
| 5 |
AAC-230001-0003-A |
L.Side panel(rought) |
1 |
|
| |
AAC-230001-0003-35A |
L.Side panel(black) |
1 |
|
| 6 |
AAC-230002-0003-A |
R.Side panel(rought) |
1 |
|
| |
AAC-230002-0003-35A |
R.Side panel(black) |
1 |
|
| 7 |
AAC-230001-0000-A |
Side Cover.L(rought) |
1 |
|
| |
AAC-230001-0000-01A |
Side Cover.L(red) |
1 |
|
| |
AAC-230001-0000-24A |
Side Cover.L(yellow) |
1 |
|
| |
AAC-230001-0000-02A |
Side Cover.L(black) |
1 |
|
| 8 |
AAC-230002-0000-A |
Side Cover.R(rought) |
1 |
|
| |
AAC-230002-0000-01A |
Side Cover.R(red) |
1 |
|
| |
AAC-230002-0000-24A |
Side Cover.R(yellow) |
1 |
|
| |
AAC-230002-0000-02A |
Side Cover.R(black) |
1 |
|
| 9 |
GB845-85-42012-K |
Tapping Screw
ST4.2*12 |
4 |
|
| 10 |
FH-90113-06016-L |
Cross Recess
Plate-headed Screw GB841 M6*16 |
1 |
|
| 11 |
FH-330601-0042 |
Spring clip 4.2 |
2 |
|
| 12 |
GB845-85-48020-K |
Tapping Screw
ST4.8*20 |
4 |
|
|
|
|
|
|
|
|
|
|
