2009 Peirspeed Key Largo - Parts Manual

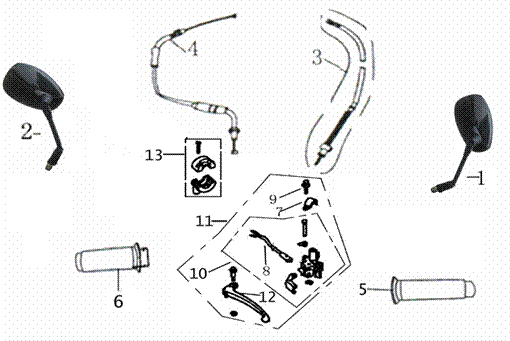

F06 - REARVIEW MIRRORS

手把套

NO

PART NO

DESCRIPTION

REQ QTY

1

AAF-320101-0000

rearview mirror L.

1

2

AAF-320102-0000

rearview mirror R.

1

3

AAC-170802-0000

RR.Brake cable

1

4

AAC-170500-0000

Throttle cable

1

5

AY-340002-0401

handle rubber,L

1

6

AY-340002-0300

handle rubber,R

1

7

AAC-250104-0000

Fixing plate,L.handle bar seat

1

8

AAC-250306-0000

RR.Brake SWITCH

1

9

GB5787-86-06020-K

Hex Flange Locknut

1

10

AAC-250103-0000

Left Handle lever bracket

1

11

AAC-250101-0000

L.handle comp.

1

12

AAC-250102-0000

Left Handle lever

1

13

AAC-240000-0200

Throttle seat

1
