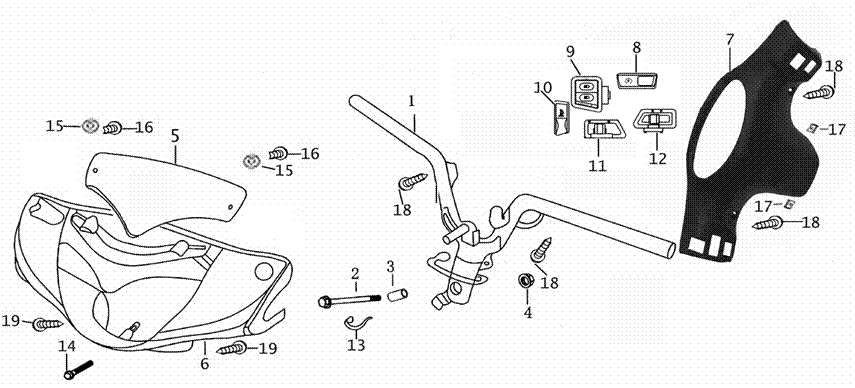

| F05 - HANDLEBAR & COVER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NO |
PART NO |
DESCRIPTION |
REQ QTY |
|
| 1 |
AAC-060100-0000 |
Handlebar |
1 |
|
| 2 |
GB5787-86-10050X-B |
Bolt M10*1.25*50 |
1 |
|
| 3 |
HP1-070109-0000 |
Bush |
1 |
|
| 4 |
GB6187-86-10000X-B |
Locknut M10×1.25 |
1 |
|
| 5 |
AAC-230003-0002 |
Wind defiector cover |
1 |
|
| 6 |
AAC-230007-0002-A |
FR.Cover,
Handlebar(rought) |
1 |
|
| |
AAC-230007-0002-34A |
FR.Cover(black),
Handlebar |
1 |
|
| 7 |
AAC-240001-0001 |
RR.Cover, Handlebar |
1 |
|
| 8 |
AAC-250302-0000 |
Start button |
1 |
|
| 9 |
AAC-250303-0000 |
Light switch |
1 |
|
| 10 |
AAC-250304-0000 |
Horn Button |
1 |
|
| 11 |
AAC-250305-0000 |
turning light Switch |
1 |
|
| 12 |
AAC-250306-0000 |
Kill off Switch |
1 |
|
| 13 |
HA2-340003-0200 |
Band |
1 |
|
| 14 |
GB9074.5-88-05035-K |
Cross Recess
Plate-headed Screw with washerM5*35 |
1 |
|
| 15 |
GB/T96.1-5-A2F |
GB96 φ5 |
2 |
|
| 16 |
FH-GB/T819.1-M4*10-A2F |
Sunk screw GB819
M4*10 |
2 |
|
| 17 |
FH-330601-0042 |
Spring clip |
2 |
|
| 18 |
GB845-85-42012-K |
Tapping ScrewST4.2*12 |
4 |
|
| 19 |
GB845-85-48016-K |
Tapping ScrewST4.8*16 |
2 |
|
|
|
|
|
|
|
|
|
