2009 Peirspeed Key Largo - Parts Manual

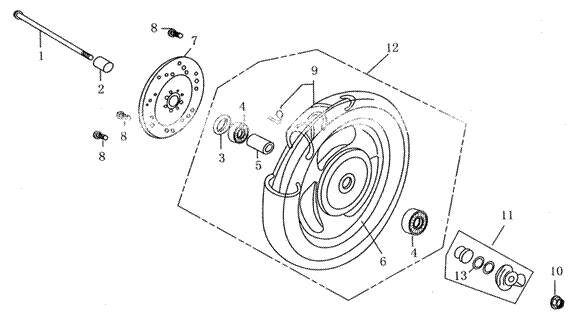

F04 - FRONT WHEEL

NO

PART NO

DESCRIPTION

REQ QTY

1

AS-040402-0300

Front Axle Assy

1

2

AS-040402-0302

Left Bush,Front Axle

1

3

AAC-041010-0300

oil seal,Front Axle

1

4

AAF-041010-0000

Bearing6201,Front Wheel

2

5

AAC-041010-0400

inner spacer,FR.Wheel

1

6

AAC-040401-0000-02D

Front Wheel Rim Assembly(black with light edge)

1

AAC-040401-0000-01D

Front Wheel Rim Assembly(red with light edge)

1

7

AAC-380100-0001

Brake Plate

1

8

AAC-380100-0300

Front Brake plate nut

3

9

V171020-FYT-0000

Tire(3.50-10,4PR)

1

10

GB6187-86-12000-B

Lock nut M6

1

11

AS-040102-0000

Counter

1

13

AS-040401-0203

Oil seal,count gear

1
