2009 Peirspeed Key Largo - Parts Manual

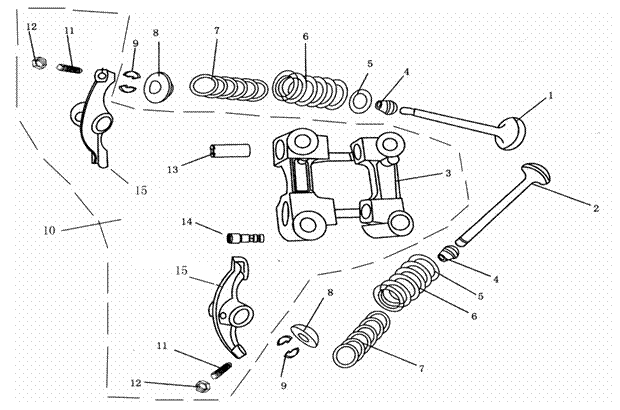

E10 - VALVE TRAIN

未标题-10

NO

PART NO

DESCRIPTION

REQ QTY

1

14711-FYBQ-000

Intake Valve

1

2

14721-FYBQ-000

Exhaust Valve

1

3

14433-FYBQ-000

Swing Arm Bracket

1

4

14790-FYBQ-000

Oil Seal,Valve

2

5

14775-FYDQ-000

Washer,Outer Spring

2

6

14751-FYBQ-000

Valve Outer Spring

2

7

14761-FYBQ-000

Valve Inner Spring

2

8

14771-FYBQ-000

Valve Spring Seat

2

9

14781-FYBQ-000

Valve Nip

4

10

14430-FYBQ-000

1

11

14436-FYBQ-000

Adjusting Screw,Valve

2

12

14437-FYBQ-000

Lock Nut,Valve

2

13

14452-FYBQ-000

Swing Arm Shaft,Intake Valve

1

14

14451-FYBQ-000

Swing Arm Shaft,Exhaust Valve

1

15

E152201-FYBQ-0000

Swing Arm

2
