2009 Peirspeed Key Largo - Parts Manual

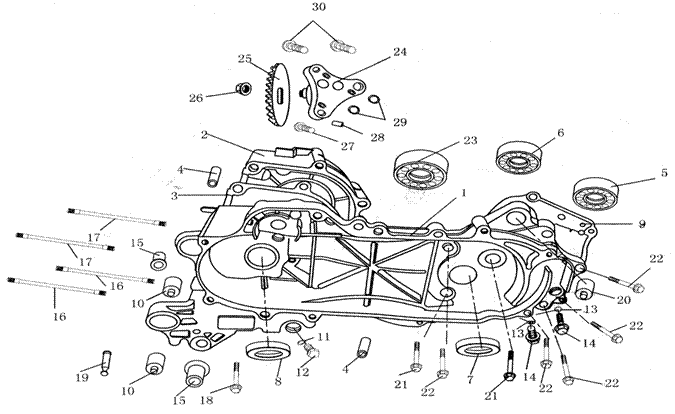

E09 - CRANKCASE & OIL PUMP

NO

PART NO

DESCRIPTION

REQ QTY

1

11200-FYBQ-000

Left Crankcase

1

2

11100-FYBQ-000

Right Crankcase

1

3

11191-FYBQ-000

Gasket,Crankcase

1

4

90411-08014-000

Dowel Pin8*14(φ6.5)

2

5

6203/P6-GB/T276-94

Bearing 6203

1

6

6201/C3-GB/T276-94

Bearing 6201

1

7

90801-17030-005

Oil Seal 17*30*5

1

8

90719-FYDQ-000

Oil Seal 19.8*30*5

1

9

22112-FYBQ-010

Gasket,Deceleration Gear Case

1

10

11126-FYDQ-000

Bushing

2

11

90312-FYDQ-00R

Aluminum Washer 12

1

12

90115-FYDQ-000

Discharge Bolt 12*15

1

13

90308-FYIQ2-000

Washer 8

2

14

GB/T16674.1-M8*16-A3H

Flange Bolt M8*16

2

15

11266-FYBQ-000

Bushing

2

16

GB953-88-07176-C

Stud Bolt M7*176

2

17

GB953-88-07168-C

Stud Bolt M7*168

2

18

90103-06045-00A2F

Flange Bolt M6*45

1

19

11268-FYBQ-000

Spring fixer

1

20

11226-FYDQ-000

Bushing

1

21

GB/T16674.1-M8*35-A2F

Flange Bolt M8*35

2

22

GB/T16674.1-M8*40-A2F

Flange Bolt M8*40

5

23

90901－6203X1

Bearing 6203X1

1

24

15100-FYBQ-000

Oil Pump Assembly

1

25

15133-FYBQ-000

Drive Gear,Oil Pump

26

GB/T6177.1-M6-A2F

Flange Nut M6

1

27

GB/T16674.1-M6*25-A2F

Flange Bolt M6*25

1

28

90411-08010-000

Dowel Pin φ8*10

1

29

90701-09016-000

O环9×1.6

2

30

GB/T16674.1-M6*20-A2F

Flange Bolt M6*20

2
