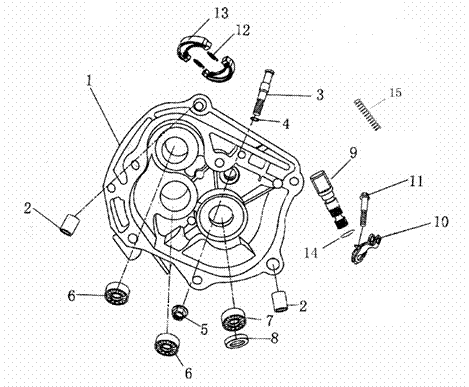

| E06 - DECELERATION GEAR CASE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NO |
PART NO |
DESCRIPTION |
REQ QTY |
|
| 1 |
22110-FYBQ-000 |
Cover,Gear Case |
1 |
|
| 2 |
90411-10020-000 |
Position Pin 10*20 |
2 |
|
| 3 |
11269-FYDQ-000 |
Support Shaft,Brake
Shoes |
1 |
|
| 4 |
90775-FYDQ-000 |
O-ring 7.5*1.5 |
1 |
|
| 5 |
GB/T6187.1-M8-A2F |
Locknut M8 |
1 |
|
| 6 |
6201/C3-GB/T276-94 |
Bearing 6201 |
2 |
|
| 7 |
6004-2RS-GB/T276-94 |
Bearing 6004 |
1 |
|
| 8 |
90827-FYDQ-000 |
Oil Seal 27*42*7 |
1 |
|
| 9 |
11265-FYDQ-000 |
Camshaft, Rear Brake |
1 |
|
| 10 |
11267-FYBQ-000 |
Rocker,Rear Brake |
1 |
|
| 11 |
GB/T5789-M6*32-F5J |
Flange Bolt M6*32 |
1 |
|
| 12 |
43101-FYBQ-000 |
Return Spring,Brake
Shoes |
2 |
|
| 13 |
11240-FYDQ-000 |
Rear Brake Shoes
Comp. |
1 |
|
| 14 |
90711-FYDQ-000 |
O-ring
11.3×1.3 |
1 |
|
| 15 |
11261-FYDQ-000 |
|
1 |
|
| 16 |
GB/T5789-M6*12-A2F |
bolt |
1 |
|
| 17 |
GB/T848-6-A2F |
washer |
1 |
|
|
|
|
|
|
