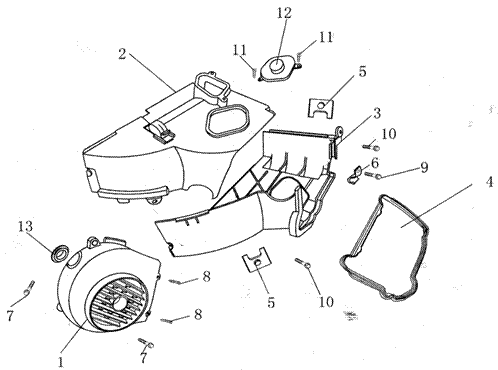

| E05 - FAN COVER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NO |
PART NO |
DESCRIPTION |
REQ QTY |
|
| 1 |
19610-FYBQ-000 |
Cooling Fan Cover |
1 |
|
| 2 |
19620-FYBQ-000 |
Top Cover |
1 |
|
| 3 |
19630-FYBQ-000 |
Bottom Cover |
1 |
|
| 4 |
19621-FYBQ-000 |
Gasket,Cover |
1 |
|
| 5 |
90230-06000 |
Clip Nut |
2 |
|
| 6 |
E052123-FYIQ2-0000 |
Clamp |
1 |
|
| 7 |
GB/T16674.1-M6*25-A2F |
Flange Bolt M6*25 |
2 |
|
| 8 |
GB/T9456-M5*16-A2S |
Tapping Screw 5*16 |
2 |
|
| 9 |
GB/T16674.1-M6*25-A2F |
Flange Bolt M6*25 |
1 |
|
| 10 |
GB/T16674.1-M6*16-F5J |
Flange Bolt M6*16 |
2 |
|
| 11 |
GB845-85-03010-B |
Tapping Screw 3*10 |
2 |
|
| 12 |
19642-FYBQ-000 |
Adjuster Lid |
1 |
|
| 13 |
19624-FYBQ-000 |
Rubber Plug,Fan Cover |
1 |
|
|
|
|
|
|
