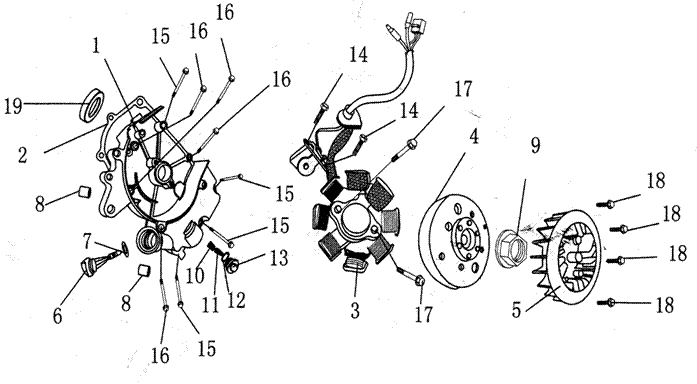

| E03 - MAGNETO |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NO |
PART NO |
DESCRIPTION |
REQ QTY |
|
| 1 |
11300-FYBQ-100 |
Right Crank Case
Assy. |
1 |
|
| 2 |
11393-FYBQ-000 |
Gasket, Right
Crankcase |
1 |
|
| 3 |
31120-FYBQ-000 |
Stator Coil Assy. |
1 |
|
| 4 |
31110-FYBQ-000 |
Fly Wheel Comp. |
1 |
|
| 5 |
19510-FYBQ-000 |
Cooling Fan |
1 |
|
| 6 |
15155-FYDQ-000 |
Oil Gauge |
1 |
|
| 7 |
90701-1803-000 |
O-ring 18.7*24.7*3.0 |
1 |
|
| 8 |
90411-08014-000 |
Pin 8*14(φ6.5) |
2 |
|
| 9 |
GB/T6177.2
M10*1.25-A2F |
Flange Nut M10 |
1 |
|
| 10 |
15160-FYDQ-000 |
Oil Filter |
1 |
|
| 11 |
15172-FYDQ-000 |
Spring, Oil Filter |
1 |
|
| 12 |
90730-FYDQ-000 |
O-ring 30.8×3 |
1 |
|
| 13 |
15171-FYDQ-000 |
Plug,Oil Filter |
1 |
|
| 14 |
GB/T5783-M5*12-A2F |
Hexagon Bolt M5*12 |
2 |
|
| 15 |
90103-06100-00F5J |
Flange Bolt M6*100 |
4 |
|
| 16 |
90103-06085-00A2F |
Flange Bolt M6*85 |
4 |
|
| 17 |
90103-06022-00A2F |
Flange Bolt M6*22 |
2 |
|
| 18 |
90103-06018-00A2F |
Flange Bolt M6*18 |
4 |
|
| 19 |
90801-16030-005 |
Oil Seal 30*16.4*5 |
1 |
|
|
|
|
|
|
|
|
|
