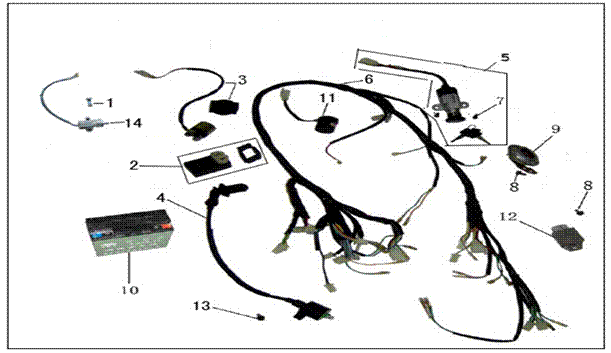

| F20 - WIRING HARNESS | |||||||
|
|
|||||||
| NO. | PART NO. | DESCRIPTION | REQ QTY | NOTES | |||
| 1 | 90424-06015-K | Big pan screw M6*15 | 1 | ||||
| 2 | E123001-FYBQ-0000 | CDI ASSY | 1 | ||||
| 3 | 35800-FYBQ-100 | Relay Starter(50QT) | 1 | ||||
| 4 | E124000-FYIQ2-0000 | Ignition Coil | 1 | ||||
| 5 | V251000-FYBT19-0000 | Lock set | 1 | ||||
| 6 | V201000-FYBT19-0000 | Wire harness | 1 | ||||
| 7 | GB/T818-M6*8-A3H | Cross head Screw | 2 | ||||
| 8 | GB/T16674.1-M6*12-A2F | Hex.flange bolt | 2 | ||||
| 9 | V202100-FYT18A-0000 | Horn | 1 | 2008.3.1日修改代码 | |||
| 10 | 31500-FYBT-000 | Battery | 1 | ||||
| 11 | 38310-FYJT13-000 | Flasher | 1 | ||||
| 12 | 31600-FYBQ-200 | Rectifier | 1 | ||||
| 13 | GB/T16674.1-M6*20-A3H | Hex.flange bolt | 1 | ||||
| 14 | 35030-FYT8-000 | kill off Switch,Side stand | 1 | ||||
