| F19

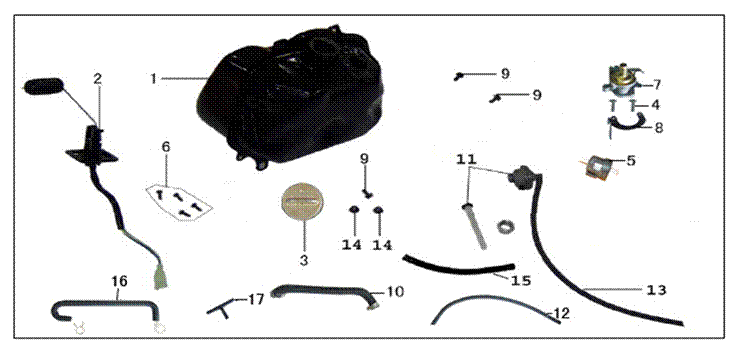

- FUEL TANK |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NO. |
PART NO. |
DESCRIPTION |
REQ QTY |
NOTES |
|
| 1 |
V061000-FYBT19-0000 |
Fuel Tank |
1 |
|
|
| 2 |
V199000-FYBT19-0000 |
Oil sensor comp. |
1 |
|
|
| 3 |
17620-FYT3A-000 |
Fuel cap |
1 |
|
|
| 4 |
GB/T16674.1-M6*20-A3H |
Hex.flange bolt |
2 |
|
|
| 5 |
16910-FYT3A-000 |
Oil filter |
1 |
|
|
| 6 |
GB/T9074.11-M5*12-A3H |
Cross head,Hex.bolt
with flat washer. |
4 |
|
|
| 7 |
V243100-FYT19-0000 |
Secondary Air
Injection valve |
1 |
|
|
| 8 |
V243010-FYBT5-0000 |
Air valve install
bracket assy |
1 |
|
|
| 9 |
GB/T16674.1-M6*16-A3H |
Hex.flange bolt |
4 |
|
|
| 10 |
18542-FY20-000 |
One way valve(with
pipe clip) |
1 |
|
|
| 11 |
16950-FYT3A-000 |
fuel cock |
1 |
|
|
| 12 |
91120-FYT6-000 |
Vacuum Hose comp. |
1 |
|
|
| 13 |
18533-FYHE5-000 |
Vacuum Hose |
1 |
|
|
| 14 |
GB/T6187.1-M6-A3H |
Hex Flange Locknut |
2 |
|
|
| 15 |
16972-FYT18-100 |
pipe comp(lucency
150mm) |
1 |
|
|
| 16 |
91116-FYIQ2-001 |
connecting Tube to
Air filter |
1 |
|
|
| 17 |
16984-FYGT9-000 |
T-Valve |
1 |
|
|
|
|
|
|
|
|
|
|
|
