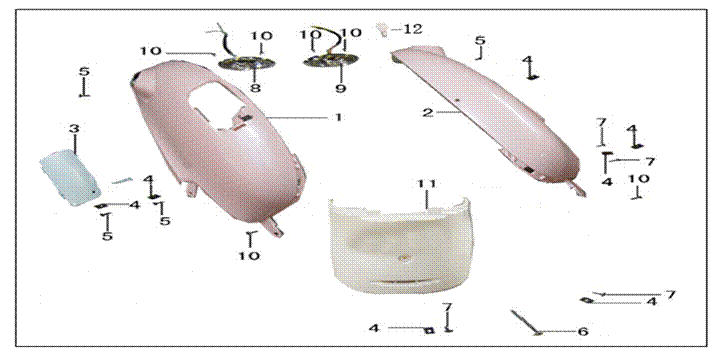

| F17
- SIDE COVERS |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NO. |
PART NO. |
DESCRIPTION |
REQ QTY |
NOTES |
|
| 1 |
V023121-FYBT19-0R19 |
R.body cover(dark red) |
1 |
|
|
| 1 |
V023121-FYBT19-0R21 |
R.body cover(pink) |
1 |
|
|
| 1 |
V023121-FYBT19-0R07 |
R.body
cover(red/white) |
1 |
|
|
| 1 |
V023121-FYBT19-0BL12 |
R.body cover(blue) |
1 |
|
|
| 2 |
V023131-FYBT19-0R19 |
L.body cover(dark
red) |
1 |
|
|
| 2 |
V023131-FYBT19-0R21 |
L.body cover(pink) |
1 |
|
|
| 2 |
V023131-FYBT19-0R07 |
L.body
cover(red/white) |
1 |
|
|
| 2 |
V023131-FYBT19-0BL12 |
L.body cover(blue) |
1 |
|
|
| 3 |
V023127-FYBT19-0R19 |
Small cover,R.body
cover(dark red) |
1 |
|
|
| 3 |
V023127-FYBT19-0R21 |
Small cover,R.body
cover(pink) |
1 |
|
|
| 3 |
V023127-FYBT19-0R07 |
Small cover,R.body
cover(red/white) |
1 |
|
|
| 3 |
V023127-FYBT19-0BL12 |
Small cover,R.body
cover(blue) |
1 |
|
|
| 4 |
90183-05807-00 |
Spring Nut |
7 |
|
|
| 5 |
90160-05803-00 |
Round head,Tapping
Screw |
4 |
|
|
| 6 |
GB/T16674.1-M6*70-F5J |
Hex.flange bolt |
1 |
|
|
| 7 |
GB/T845-ST4.8*13-A2-50 |
Cross head,Tapping
Screw(stainless steel) |
4 |
|
|
| 8 |
33520-FYJT13-000 |
Turning
light((R./DOT)，REAR |
1 |
|
|
| 9 |
33510-FYJT13-000 |
Turning
light((L./DOT)，REAR |
1 |
|
|
| 10 |
GB/T845-ST4.8*12-A3H |
Cross head,panhead
tapping screw |
6 |
|
|
| 11 |
V023301-FYBT19-0W03 |
Center cover9(white) |
1 |
|
|
| 11 |
V023301-FYBT19-0R20 |
Center cover(dark
red) |
1 |
|
|
| 11 |
V023301-FYBT19-1W10 |
Center cover(peral
white/hope 50) |
1 |
|
|
| 11 |
V023301-FYBT19-0W03 |
Center cover9(white) |
1 |
|
|
| 11 |
V023301-FYBT19-0W10 |
Center cover(peral
white/laguna 50) |
1 |
|
|
| 12 |
V183305-FYT3A-0000 |
RR.Turning bulb |
3 |
|
|
|
|
|
|
|
|
|
|
