| F16

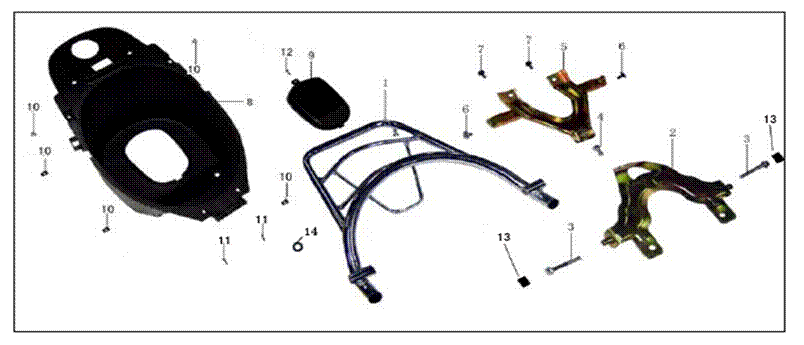

- SEAT BUCKET |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NO. |
PART NO. |
DESCRIPTION |
REQ QTY |
NOTES |
|
| 1 |
V051100-FYBT19-0000 |
Rear Rack(Chrome) |
1 |
|
|
| 2 |
V051110-FYBT19-0000 |
Install bracket,Rear
rack |
1 |
|
|
| 3 |
GB/T70.1-M8*55-A2F |
inner Hex.round head
screw |
2 |
|
|
| 4 |
GB/T16674.1-M8*20-A2F |
Hex.flange bolt |
1 |
|
|
| 5 |
V024340-FYBT19-0000 |
Install bracket
set,Rear Fender |
1 |
|
|
| 6 |
GB/T9074.1-M6*12-8.8-S1-L-A3H |
Bolt with flat Washer
Comp |
2 |
|
|
| 7 |
GB/T16674.1-M6*12-A2F |
Hex.flange bolt |
2 |
|
|
| 8 |
V025002-FYBT19-0000 |
Luggage box assy. |
1 |
|
|
| 9 |
V025006-FYBT19-0000 |
Box,carburetor |
1 |
|
|
| 10 |
90183-05807-00 |
Spring Nut |
5 |
|
|
| 11 |
90160-05803-00 |
Round head,Tapping
Screw |
2 |
|
|
| 12 |
GB/T845-ST4.8*12-A3H |
Cross head,panhead
tapping screw |
1 |
|
|
| 13 |
44302-FY3A-000 |
R.Rubber Bush of
FR.Wheel, |
2 |
|
|
| 14 |
V051002-FYBT19-0000 |
Rubber ring,RR.Rack |
1 |
|
|
|
|
|
|
|
|
|
|
|
