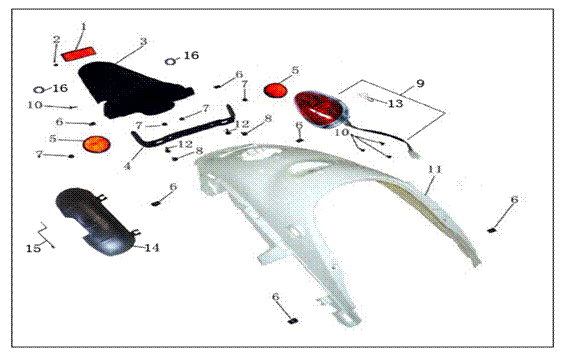

| F15
- REAR FENDER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NO. |
PART NO. |
DESCRIPTION |
REQ QTY |
NOTES |
|
| 1 |
33741-FYT3A-000 |
RR.Reflector |
1 |
|
|
| 2 |
GB/T6177.1-M5-A3H |
Hex.Flange Nut M6 |
1 |
|
|
| 3 |
V024313-FYBT19-0000 |
RR.Fender |
1 |
|
|
| 4 |
V222130-FYJT18-0000 |
License Plate
holder(USA) |
1 |
|
|
| 5 |
33750-FYT-000 |
side reflector |
2 |
|
|
| 6 |
90183-05807-00 |
Spring Nut |
6 |
|
|
| 7 |
GB/T96.1-6-A3H |
Big washer |
4 |
|
|
| 8 |
GB/T6187.1-M6-A3H |
Hex Flange Locknut |
2 |
|
|
| 9 |
V185000-FYBT19-0000 |
Taillight(DOT) |
1 |
|
|
| 10 |
GB/T845-ST4.8*12-A3H |
Cross head,panhead
tapping screw |
3 |
|
|
| 11 |
V024101-FYBT19-0W03 |
RR.Center
cover9(white) |
1 |
|
|
| 11 |
V024101-FYBT19-0R20 |
RR.Center cover(dark
red) |
1 |
|
|
| 11 |
V024101-FYBT19-0W10 |
RR.Center cover(peral
white) |
1 |
|
|
| 11 |
V024101-FYBT19-0W03 |
RR.Center
cover9(white) |
1 |
|
|
| 11 |
V024101-FYBT19-0W10 |
RR.Center cover(peral
white) |
1 |
|
|
| 12 |
90612-FYBQ-00C |
Inner Hex.bolt |
2 |
|
|
| 13 |
V18530A-FYBT19-0000 |
Bulb,Taillight |
1 |
|
|
| 14 |
V024361-FYBT13-0000 |
Rear Inner Fender |
1 |
|
|
| 15 |
V024362-FYBT13-0000 |
Install bracket,Rear
Inner Fender |
1 |
|
|
| 16 |
80111-FYJ-000 |
Rubber bush,RR.Fender |
2 |
|
|
|
|
|
|
|
|
