2009 Peirspeed Bolero - Parts Manual

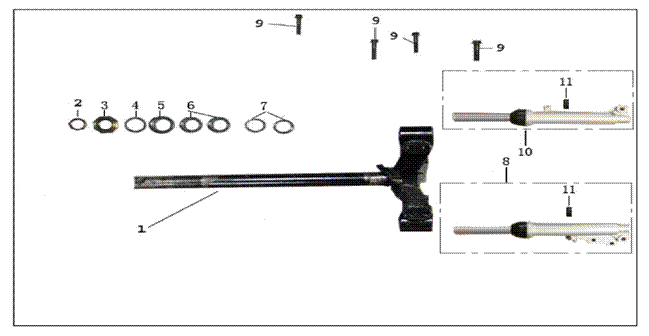

F14 - STEERING STEM

NO.

PART NO.

DESCRIPTION

REQ QTY

NOTES

1

V103000-FYBT19-0000

Steering Stem

1

2

V103011-FYBT19-0000

Ball race,upper

1

3

V103017-FYBT19-0000

lockunt,Steering Stem

1

4

V103012-FYBT19-0000

Ball race,lower

1

5

V103018-FYBT19-0000

Adjusting nut,Steering Stem

1

6

V103013-FYBT19-0000

Bowl,upper

2

7

V103020-FYBT19-0000

upper ball bracket comp.

2

8

V131800-FYBT19-0000

FR.shock absorber.Right

1

9

GB/T9074.15-M8*40-A3H

Hex.Bolt with spring washer

4

10

V131700-FYBT19-0000

FR.shock absorber.Left

1

11

V131707-FYBT19-0000

2
