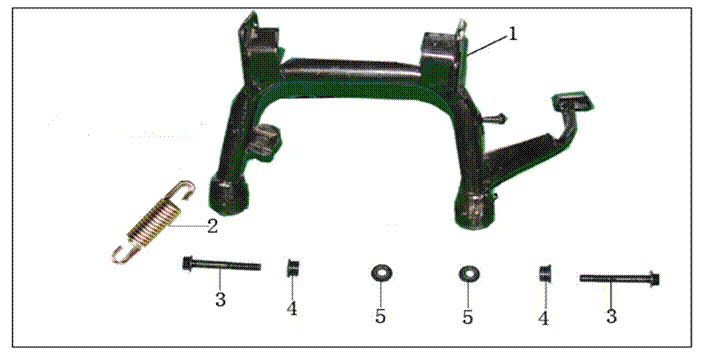

F13 - CENTER STAND
主支架副本
NO. PART NO. DESCRIPTION REQ QTY NOTES
1 V015100-FYBT19-0000 Main stand comp. 1
2 95014-FYBT-100 Main stand Spring 1
3 GB/T16674.1-M8*45-A2F Hex.flange bolt 2
4 50505-FYBT-000 Main stand Bush 2
5 GB/T6187.1-M8-F5J Hex Flange Locknut 2
