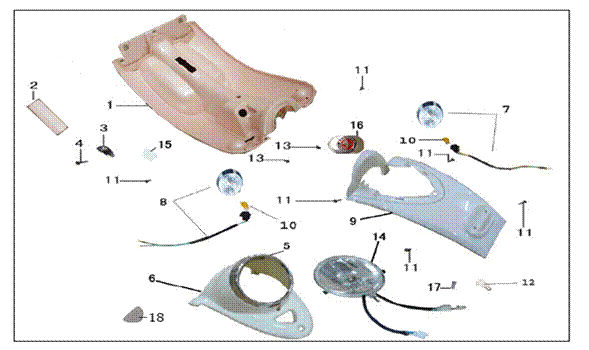

| F09
- FRONT COVER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NO. |
PART NO. |
DESCRIPTION |
REQ QTY |
NOTES |
|
| 1 |
V022102-FYBT19-0R19 |
Cover set,FR.cover(dark red) |
1 |
|
|
| 1 |
V022102-FYBT19-0R21 |
Cover
set,FR.cover(pink) |
1 |
|
|
| 1 |
V022102-FYBT19-0R07 |
Cover
set,FR.cover(red/white) |
1 |
|
|
| 1 |
V022102-FYBT19-0BL12 |
Cover
set,FR.cover(blue) |
1 |
|
|
| 2 |
V02230C-FYBT19-0R19 |
Cap for number
inspect hole(dark red) |
1 |
|
|
| 2 |
V02230C-FYBT19-0R21 |
Cap for number
inspect hole(pink) |
1 |
|
|
| 2 |
V02230C-FYBT19-0R07 |
Cap for number
inspect hole(red/white) |
1 |
|
|
| 2 |
V02230C-FYBT19-0BL12 |
Cap for number
inspect hole(blue) |
1 |
|
|
| 3 |
V02230B-FYBT19-0000 |
Hook for helmet |
1 |
|
|
| 4 |
GB/T16674.1-M6*20-A3H |
Hex.flange bolt |
1 |
|
|
| 5 |
V021201-FYBT19-0000 |
Headlamp shade |
1 |
|
|
| 6 |
V181311-FYBT19-0W03 |
Install Cover set for
headlight(white) |
1 |
|
|
| 6 |
V181311-FYBT19-0R20 |
Install Cover set for
headlight(dark red) |
1 |
|
|
| 6 |
V181311-FYBT19-0W10 |
Install Cover set for
headlight(pearl white) |
1 |
|
|
| 6 |
V181311-FYBT19-0W03 |
Install Cover set for
headlight(white) |
1 |
|
|
| 6 |
V181311-FYBT19-0W10 |
Install Cover set for
headlight(pearl white) |
1 |
|
|
| 7 |
V183100-FYBT19-0000 |
FR.Turning light
assy.L. |
1 |
|
|
| 8 |
V183200-FYBT19-0000 |
FR.Turning light
assy.R. |
1 |
|
|
| 9 |
V022101-FYBT19-0W03 |
FR.Cover(white) |
1 |
|
|
| 9 |
V022101-FYBT19-0R20 |
FR.Cover(dark red) |
1 |
|
|
| 9 |
V022101-FYBT19-0W10 |
FR.Cover(pearl white) |
1 |
|
|
| 9 |
V022101-FYBT19-0W03 |
FR.Cover(white) |
1 |
|
|
| 9 |
V022101-FYBT19-0W10 |
FR.Cover(pearl white) |
1 |
|
|
| 10 |
V183105-FYJT13-1000 |
Bulb,FR.turning
light(12v5w) |
2 |
|
|
| 11 |
GB/T845-ST4.8*13-A2-50 |
Cross head,panhead
tapping screw |
6 |
|
|
| 12 |
V181007-FY19-0000 |
Headlight bulb |
1 |
|
|
| 13 |
GB/T845-ST4.2*12-A3H |
Cross head,panhead
tapping screw |
2 |
|
|
| 14 |
V181000-FYBT19-0000 |
Headlight assy.(DOT) |
1 |
|
|
| 15 |
V023135-FYBT19-0R19 |
L.small cover(dark
red) |
1 |
|
|
| 15 |
V023135-FYBT19-0R21 |
L.small cover(pink) |
1 |
|
|
| 15 |
V023135-FYBT19-0R07 |
L.small
cover(red/white) |
1 |
|
|
| 15 |
V023135-FYBT19-0BL12 |
L.small cover(blue) |
1 |
|
|
| 16 |
V022107-FYBT19-0000 |
Front budge |
1 |
|
|
| 17 |
V185404-FYT13A-0000 |
Bulb,rr.license plate |
1 |
|
|
| 18 |
V022114-FYBT19-0000 |
Vent screen |
1 |
|
|
|
|
|
|
|
|
