| F08

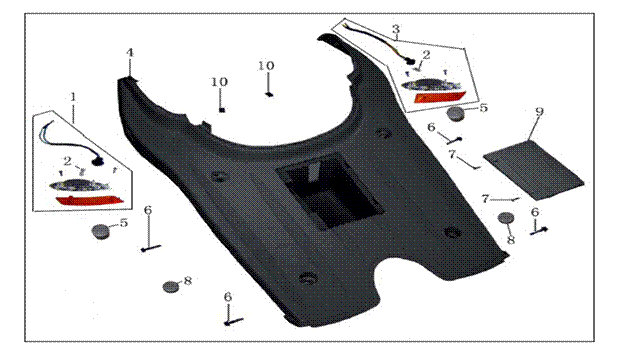

- FOOTBOARD |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NO. |
PART NO. |
DESCRIPTION |
REQ QTY |
NOTES |
|
| 1 |
V187200-FYBT19-0000 |
L.light,Foot pedal |
1 |
|
|
| 2 |
V187201-FYBT19-0000 |
Bulb,foot pedal light |
2 |
|
|
| 3 |
V187300-FYBT19-0000 |
R.light,Foot pedal |
1 |
|
|
| 4 |
V023200-FYBT19-0000 |
Foot pedal comp. |
1 |
|
|
| 5 |
V02321B-FYBT19-0000 |
Rubber
plug(long),Foot pedal |
2 |
|
|
| 6 |
GB/T9074.1-M6*25-8.8-S1-L-A3H |
Hex.flange bolt with
washer |
4 |
|
|
| 7 |
GB/T845-ST4.8*13-A2-50 |
Cross head,Tapping
Screw(stainless steel) |
2 |
|
|
| 8 |
V02321C-FYBT19-0000 |
Rubber
plug(short),Foot pedal |
2 |
|
|
| 9 |
V023206-FYBT19-0000 |
Cover for battery box |
1 |
|
|
| 10 |
90183-05807-00 |
Spring Nut |
2 |
|
|
|
|
|
|
|
|
