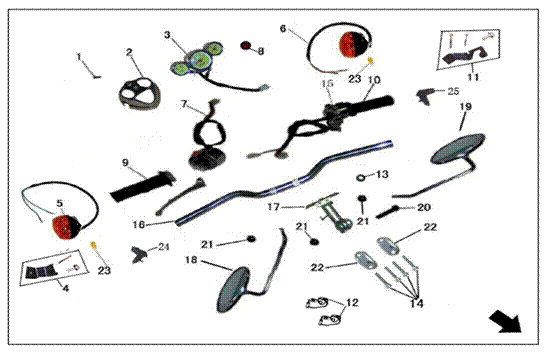

| F07
- HANDLEBAR |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NO. |
PART NO. |
DESCRIPTION |
REQ QTY |
NOTES |
| 1 |
90159-05831-00 |
Screw with washer |
3 |
|
| 2 |
V021001-FYBT19-0000 |
Decorative cover for
upper bridge |
1 |
|
| 3 |
V190000-FYBT19-0000 |
Speedometer
assy.(Mph) |
1 |
|
| 4 |
V183110-FYBT19-0000 |
Bracket for
FR.Turning light L. |
1 |
|
| 5 |
33410-FYJT13-000 |
Turning
light((L./DOT),Front |
1 |
|
| 6 |
33420-FYJT13-000 |
Turning
light((R./DOT),Front |
1 |
|
| 7 |
V204200-FYBT19-0000 |
Switch Assy.,R. |
1 |
|
| 8 |
V064010-FYBT19-0000 |
Engine oil tank cover |
1 |
|
| 9 |
V090400-FYBT19-0000 |
Throttle Turning Grip
Comp. |
1 |
|
| 10 |
V090001-FYBT19-0000 |
Handlebar Rubber,L. |
1 |
|
| 11 |
V183220-FYBT19-0000 |
Bracket for
FR.Turning light R. |
1 |
|
| 12 |
V090042-FYBT19-0000 |
Lower block
comp.,Handlebar |
2 |
|
| 13 |
53124-FYT3A-000 |
Handler Bush |
1 |
|
| 14 |
GB/T16674.1-M6*32-F5J |
Hex.flange bolt |
4 |
|
| 15 |
V204100-FYBT19-0000 |
Switch Assy.,Left |
1 |
|
| 16 |
V091001-FYBT19-0000 |
Handlebar pipe |
1 |
|
| 17 |
V09000A-FYBT19-0000 |
up fixing
plate,Handlebar |
2 |
|
| 18 |
V212200-FYBT19-0000 |
Rearview
mirror.R/DOT(chrome) |
1 |
|
| 19 |
V212100-FYBT19-0000 |
Rearview
mirror.L/DOT(chrome) |
1 |
|
| 20 |
GB/T16674.2-M10*1.25*50-A3H |
Hex.flange bolt |
1 |
|
| 21 |
GB/T6187.2-M10*1.25-A3H |
Hex Flange
Locknut(closely-pitched) |
3 |
|
| 22 |
V090041-FYBT19-0000 |
upper block
comp.,Handlebar |
2 |
|
| 23 |
V183105-FYJT13-1000 |
Bulb,FR.turning
light(12v5w) |
2 |
|
| 24 |
V021508-FYBT19-0000 |
L.rubber
plug,FR.Turning light |
1 |
|
| 25 |
V021508-FYBT19-1000 |
R.rubber
plug,FR.Turning light |
1 |
|
|
|
|
|
|
