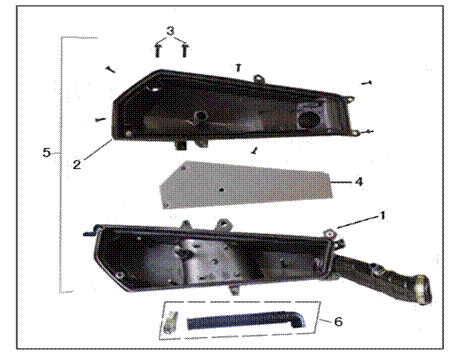

| F02 - AIR FILTER | ||||||
|
|
||||||
| NO. | PART NO. | DESCRIPTION | REQ QTY | NOTES | ||
| 1 | V241016-FYBT19-0000 | Air filter body | 1 | |||
| 2 | V241011-FYBT19-0000 | Air filter cover | 1 | |||
| 3 | GB/T16674.1-M6*28-A3H | Hex.flange bolt | 2 | |||
| 4 | V241201-FYBT19-0000 | Air Filter Element | 1 | |||
| 5 | V241010-FYBT13-0000 | Air filter Assy. | 1 | |||
| 6 | 11340-FYBT-000 | Vent pipe(Big/with clip) | 1 | |||
