| F01

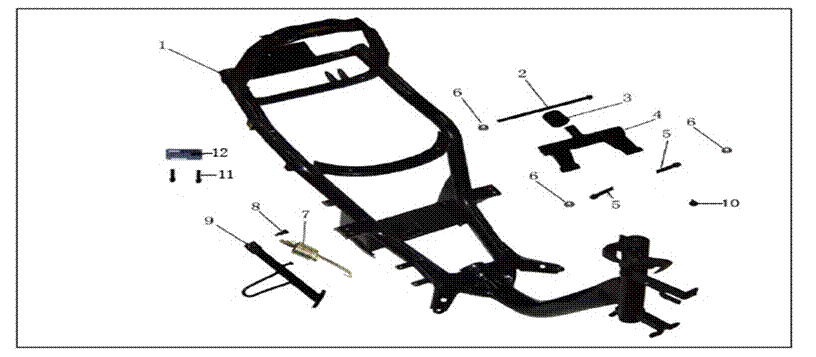

- FRAME |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NO. |
PART NO. |
DESCRIPTION |
REQ QTY |
NOTES |
|
| 1 |
V011000-FYBT19-0000 |
Frame |
1 |
|
|
| 2 |
3XG-F5181-0000 |
Front Axle |
1 |
|
|
| 3 |
V146001-FYBT19-0000 |
Rubber cushion,Engine
Hanger |
1 |
|
|
| 4 |
V146100-FYBT19-0000 |
Hanger comp.Engine |
1 |
|
|
| 5 |
GB/T16674.2-M10*1.25*75-A3H |
Hex.flange bolt |
2 |
|
|
| 6 |
GB/T6187.2-M10*1.25-A3H |
Hex Flange
Locknut(closely-pitched) |
3 |
|
|
| 7 |
95015-FYT13-000 |
Spring,side stand |
1 |
|
|
| 8 |
90120-FYEY6-000 |
Side stand Bolt |
1 |
|
|
| 9 |
V015210-FYBT19-0000 |
Side stand |
1 |
|
|
| 10 |
90424-06015-K |
Big pan screw M6*15 |
1 |
|
|
| 11 |
GB/T12618-3*9-A2F |
Rivet |
4 |
|
|
| 12 |
V222011-FYBT19-0000 |
Nameplate(PCI) |
1 |
|
|
|
|
|
|
|
|
|
|
|
